Plastic windows / Salamander Streamline 1

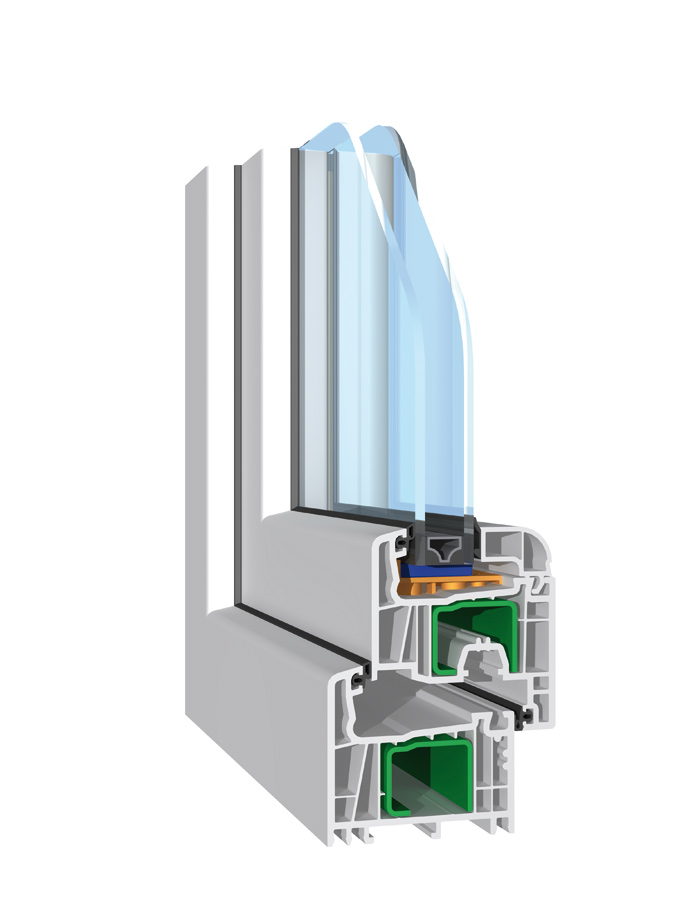

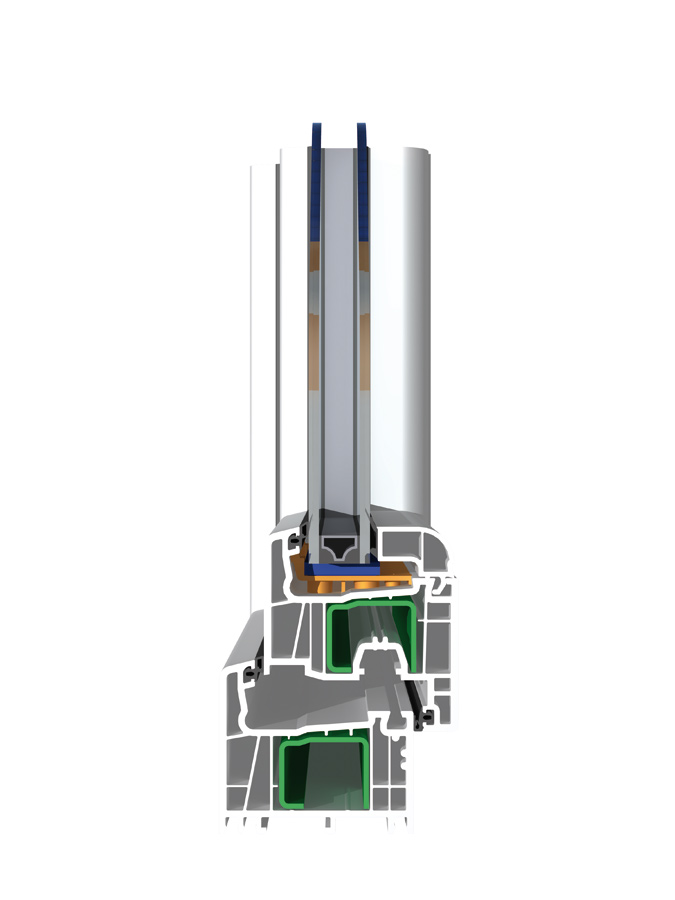

Window system Streamline. State of the art window technology with 5 or 7-chamber system.

Facts at a glance

Generous rebate
Allows the use of all commercially available window glazing as insulation, security, sound insulation and special glazing

Large steel reinforcements
Guarantee high stability of the plastic window

Completion of the form
By classic elegant look

For easy care and weatherproof
Watch plastics with high density surface structure

High quality vinyl coating
Allows a wide range of colors. Window profiles Available in many standard colors and decors. On request also in custom RAL color

Lower energy costs, quality of living
By 5- or 7-chamber system and 2 sealing levels offer the best window permanently heat and sound insulation

Applications:
Turning, tilting, tilt and turn window, side entrance, folding door or PSK

Technical specifications:

- 76 mm depth
- 5-chamber profile: Uf = 1,3 W / m²K
- 7-chamber profile: Uf = 1,3 W / m²K
- 2 sealing levels
- Sound insulation To 47 dB
- Burglary resistance to RC2 (WK2)




1 (outside square, inside round)	2 (outside square, inside round)



3 (outer square, inside square)	4 (outer square, inside square)



5 (outside square, inside round)	6 (outside square, inside round)
