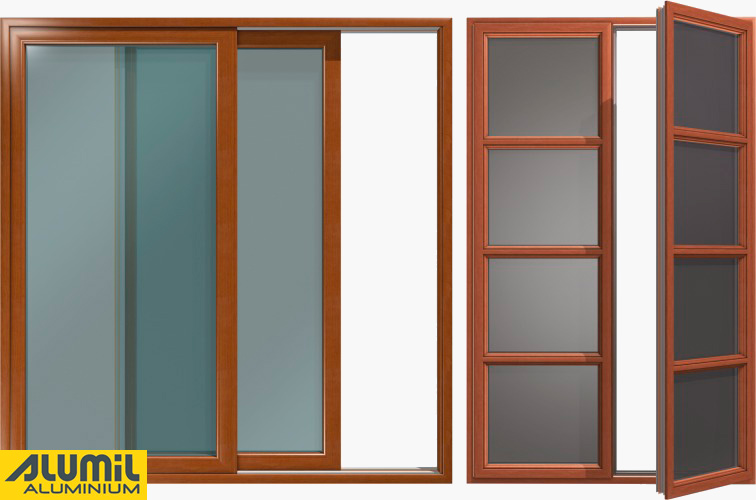

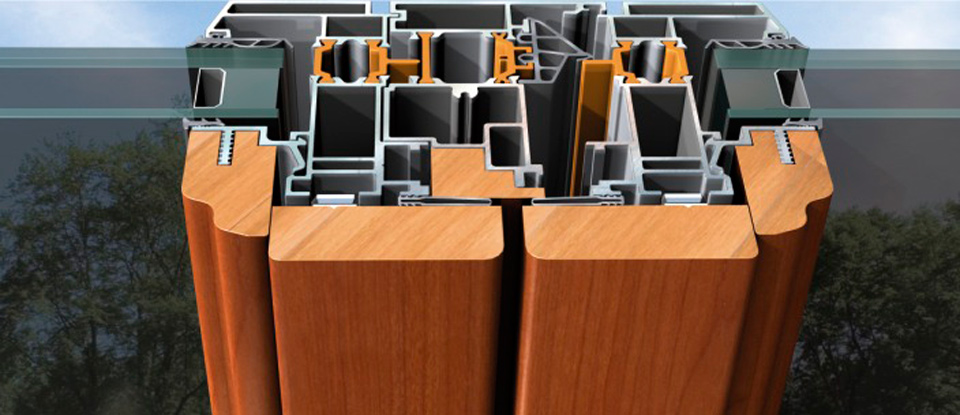

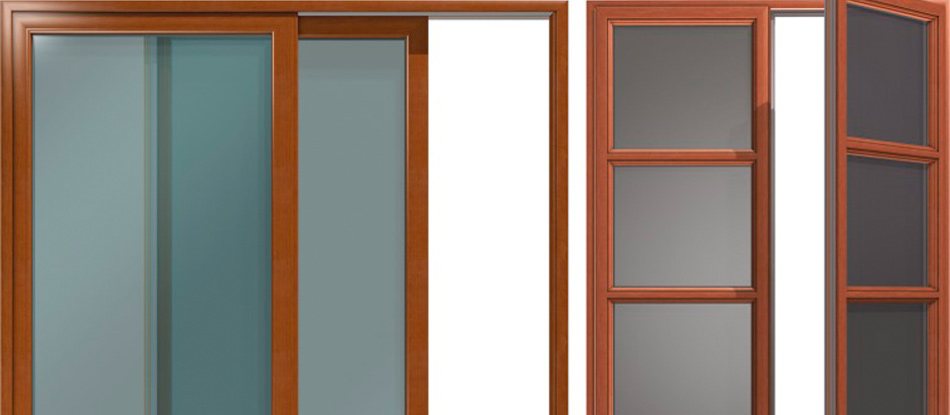

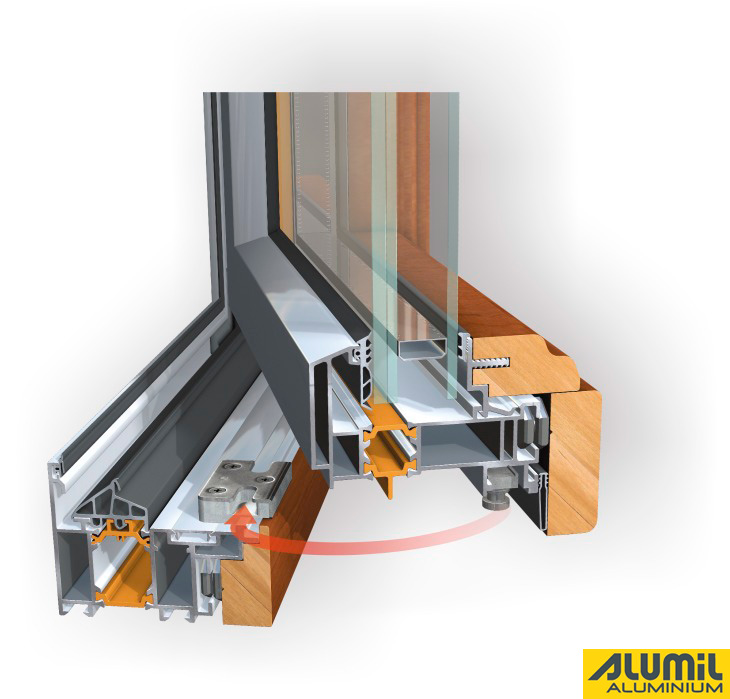

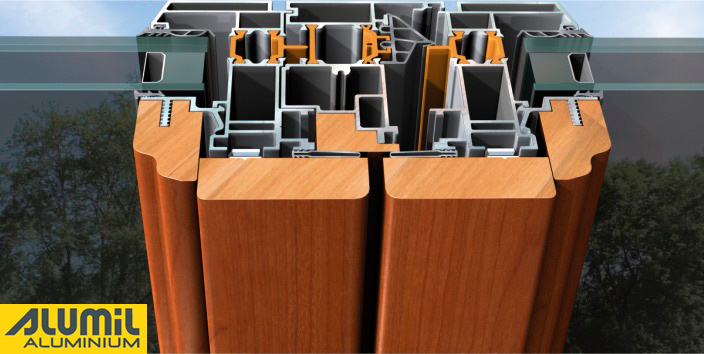

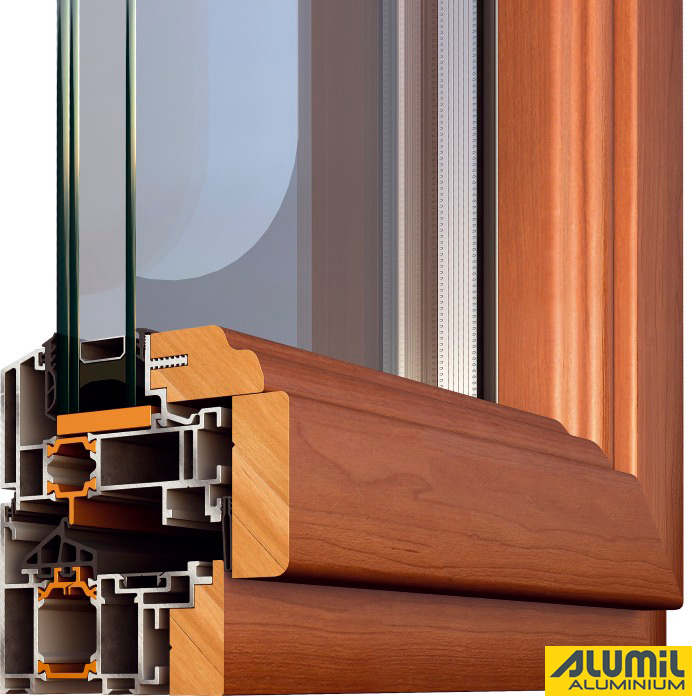

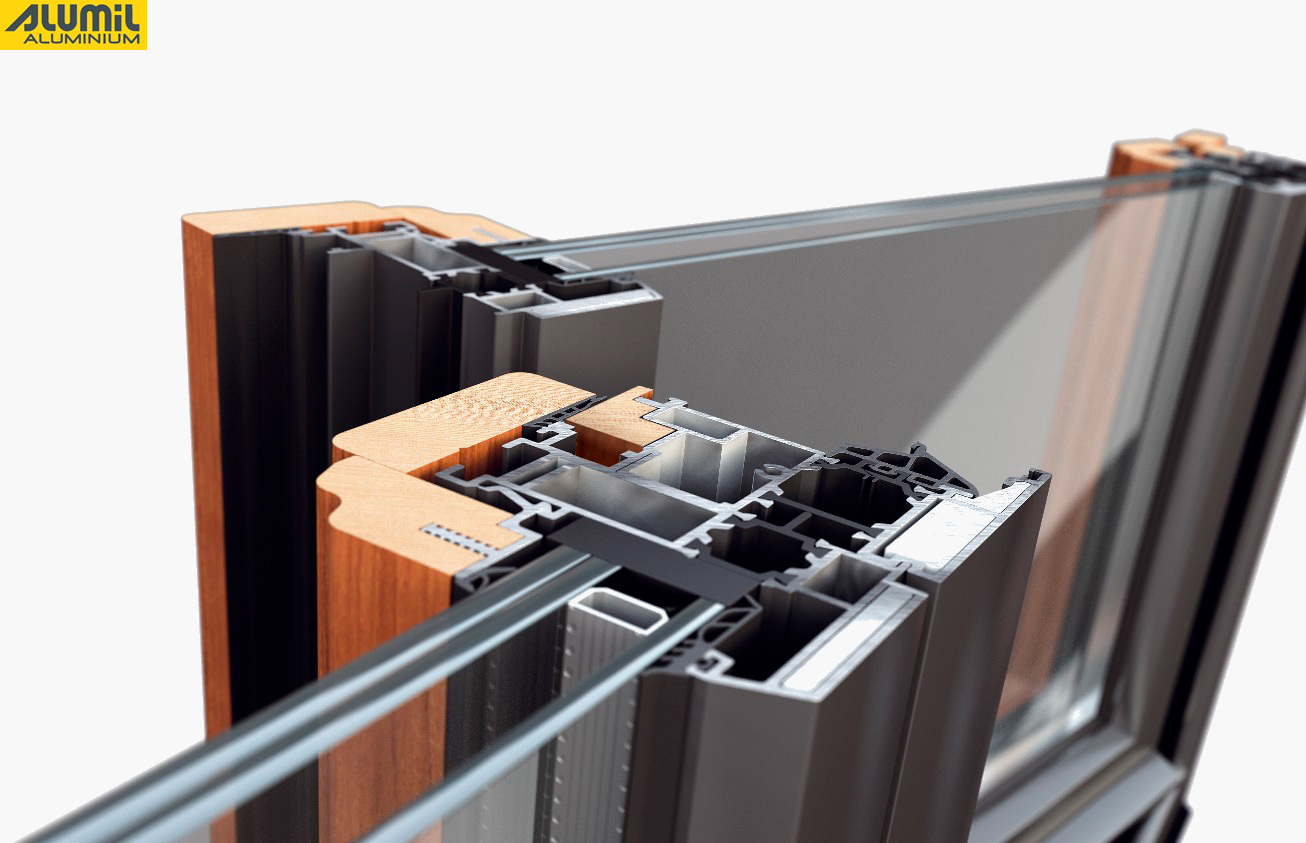

Aluminium windows / Alumil M23000M23000 - the solution for high-quality security window. Special FeaturesM23000 M23300 and are Alumils exclusive solutions for thermally insulated aluminum timber systems combine both high thermal and sound insulation requirements and burglary. Both systems provide ideal solutions that combine the top quality of aluminum with the beauty of natural wood. The combination of the two materials is produced by a sophisticated clip system, which allows ventilation and thus prevents the formation of condensation within the construction. M23000 is the solution for high-quality security window by using proven safety fittings with 13mm axle, transmission and mushroom pin security strike plates. This structure improves protection against intruders and delays the decline by 30 minutes as the RC3 certificate of IFT Rosenheim occupied. At the same time lead 24mm deep nylon spacers between the aluminum trays, an increased thermal insulation value of U = 2.1 W / (m²K). This system allows for the construction of lifting sliding windows and doors; ideal for the design of large-scale building openings. These structures are designed to a sash weight of 240kg and a glass thickness of 46mm. Stainless steel rails provide an excellent running behavior of the moving elements.
Technical characteristics:
Frame depth 90 mm
Sash depth 111 mm Weight limit of the sash: 130 kg Maximum glass thickness: 32 mm System Type: thermal break Type of insulation: 24 mm polyamide Uf-value: 2.1 W / (m²K) Types:
Product certificates: |
