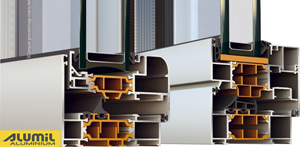

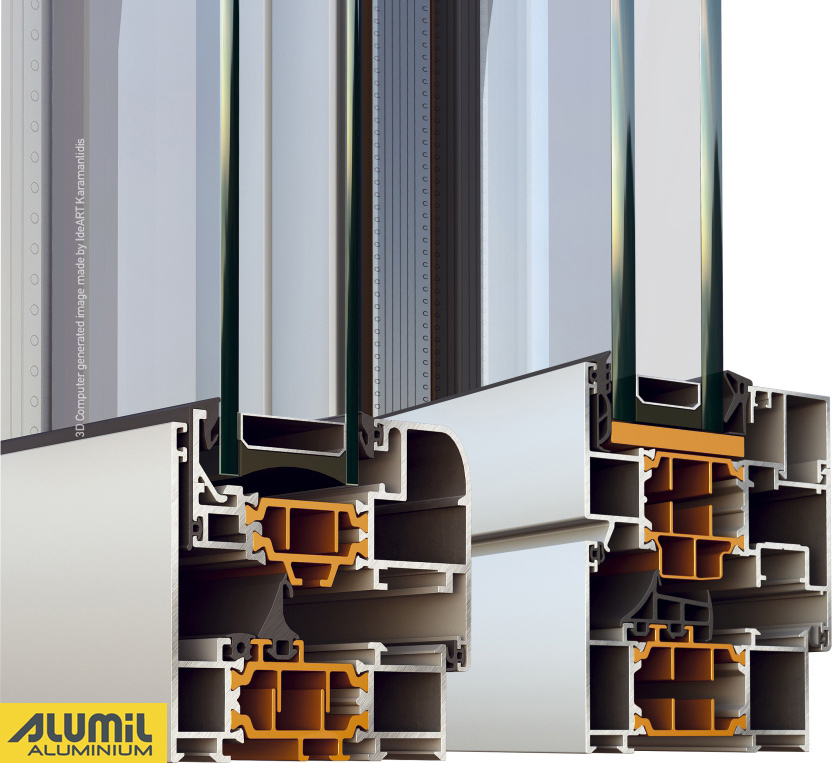

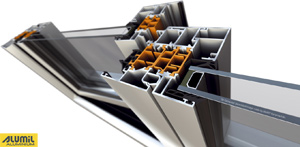

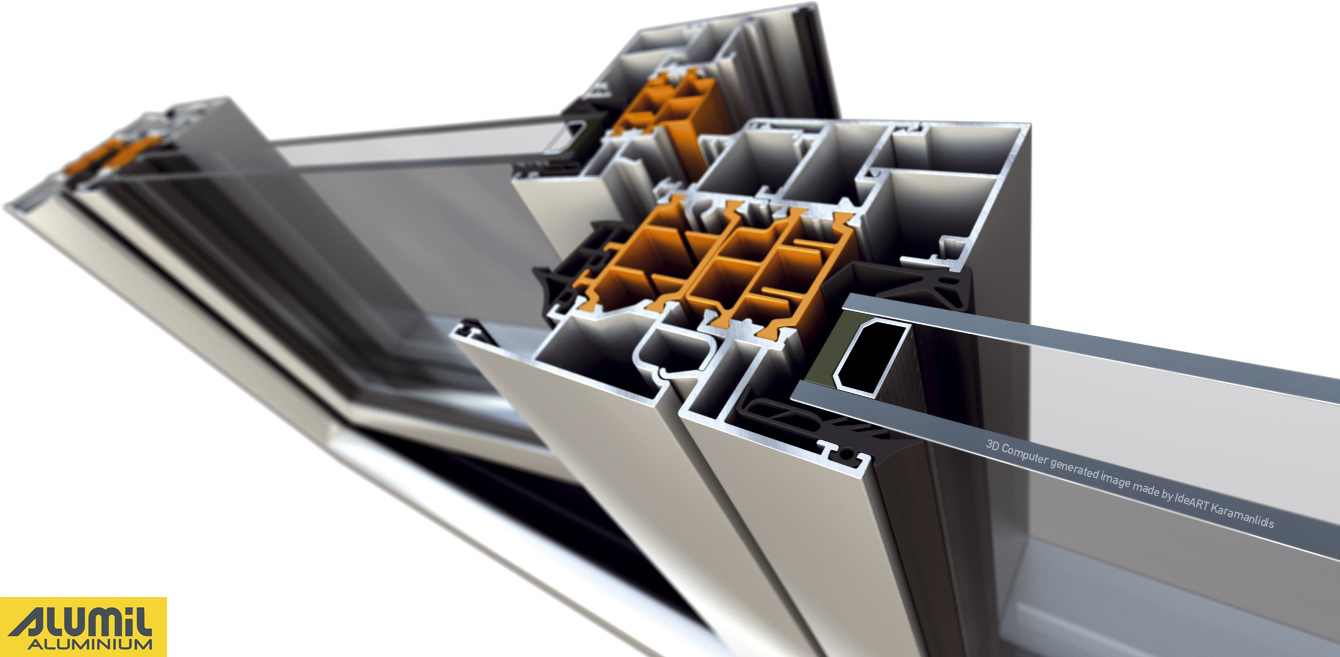

Aluminium windows / Alumil M11500M11500 series. A window and door system for increased thermal insulation requirements.Special Features
- A variety of design options, from flush, over soft line, offset design to classic (listed building)
- Block window - The series not only offers you the possibility of using an aluminum fitting with 11mm axle (Eurofalz), but also the use of standard fittings for 16mm fitting-up to RC3. - The possibility of horizontal and vertical pivot windows build. - Almost to cope with any architectural requirement. - A variety of accessories and profiles. Technical specifications:
Frame depth: 76.5 mm

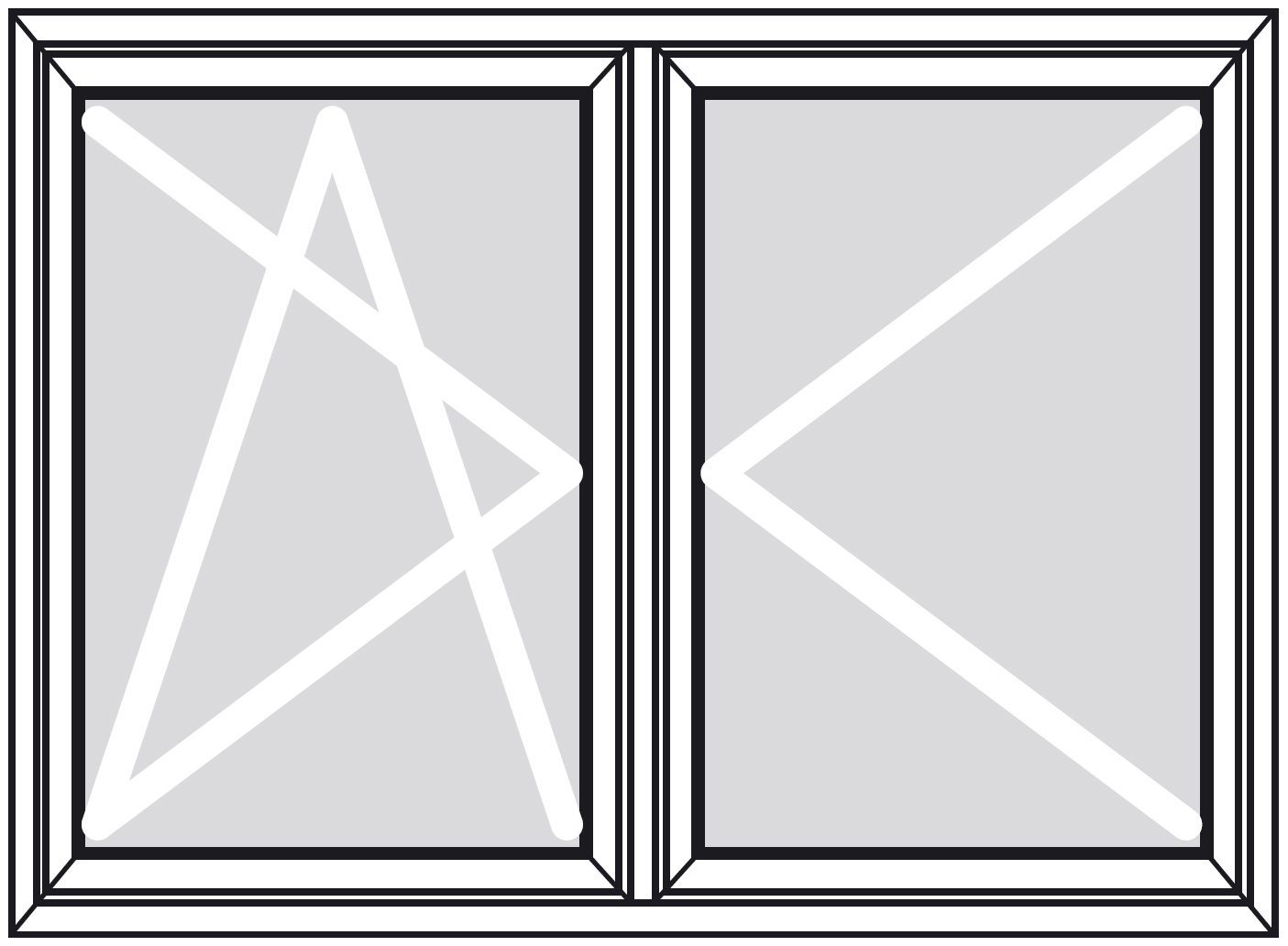

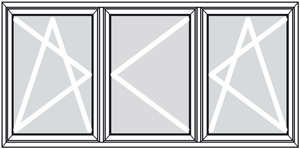

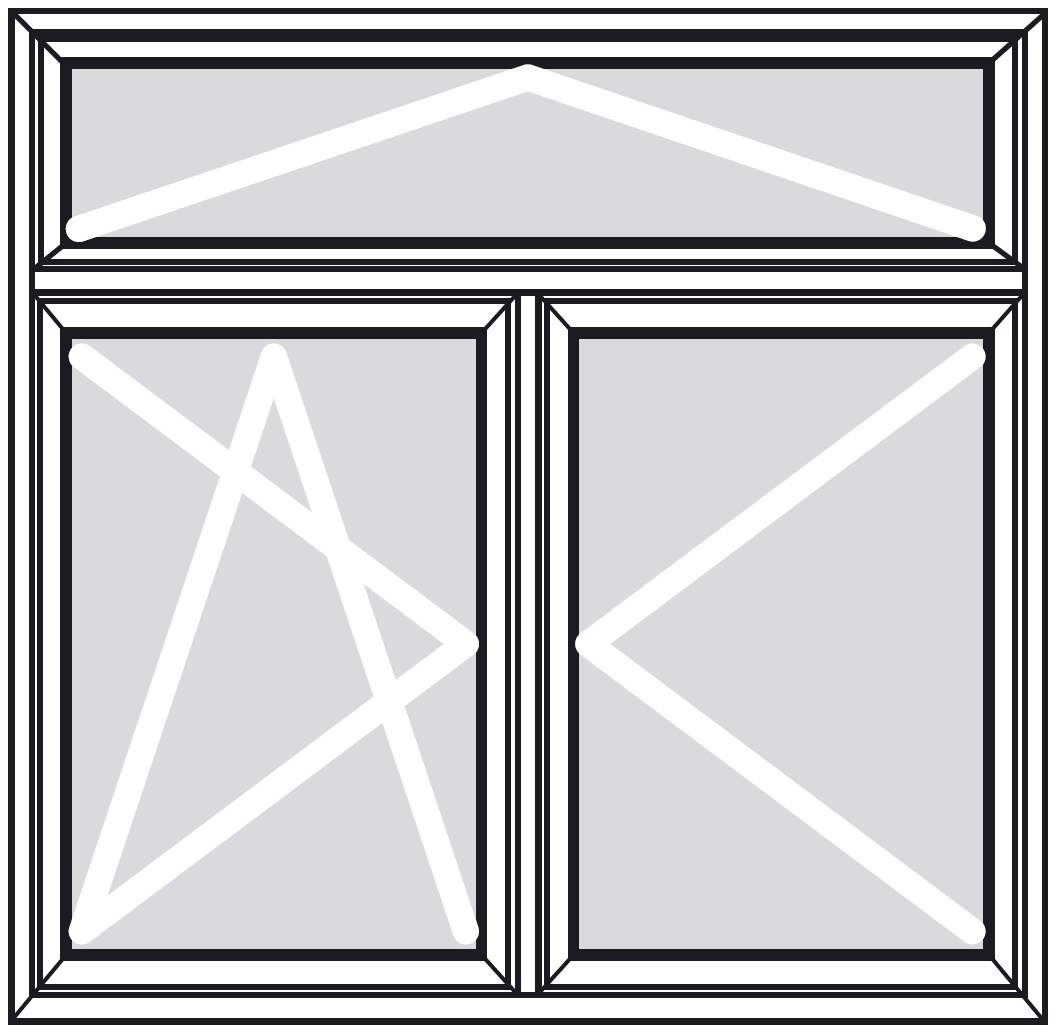

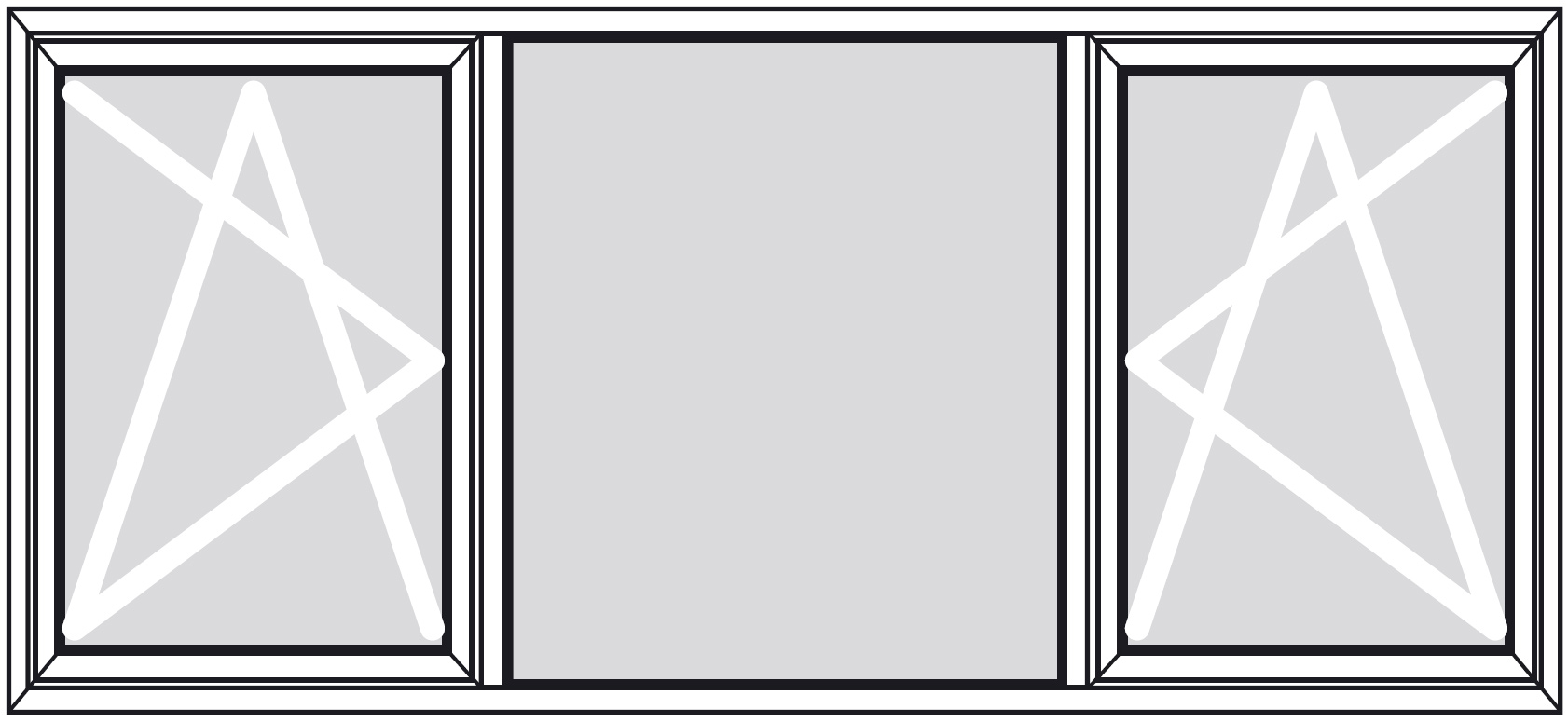

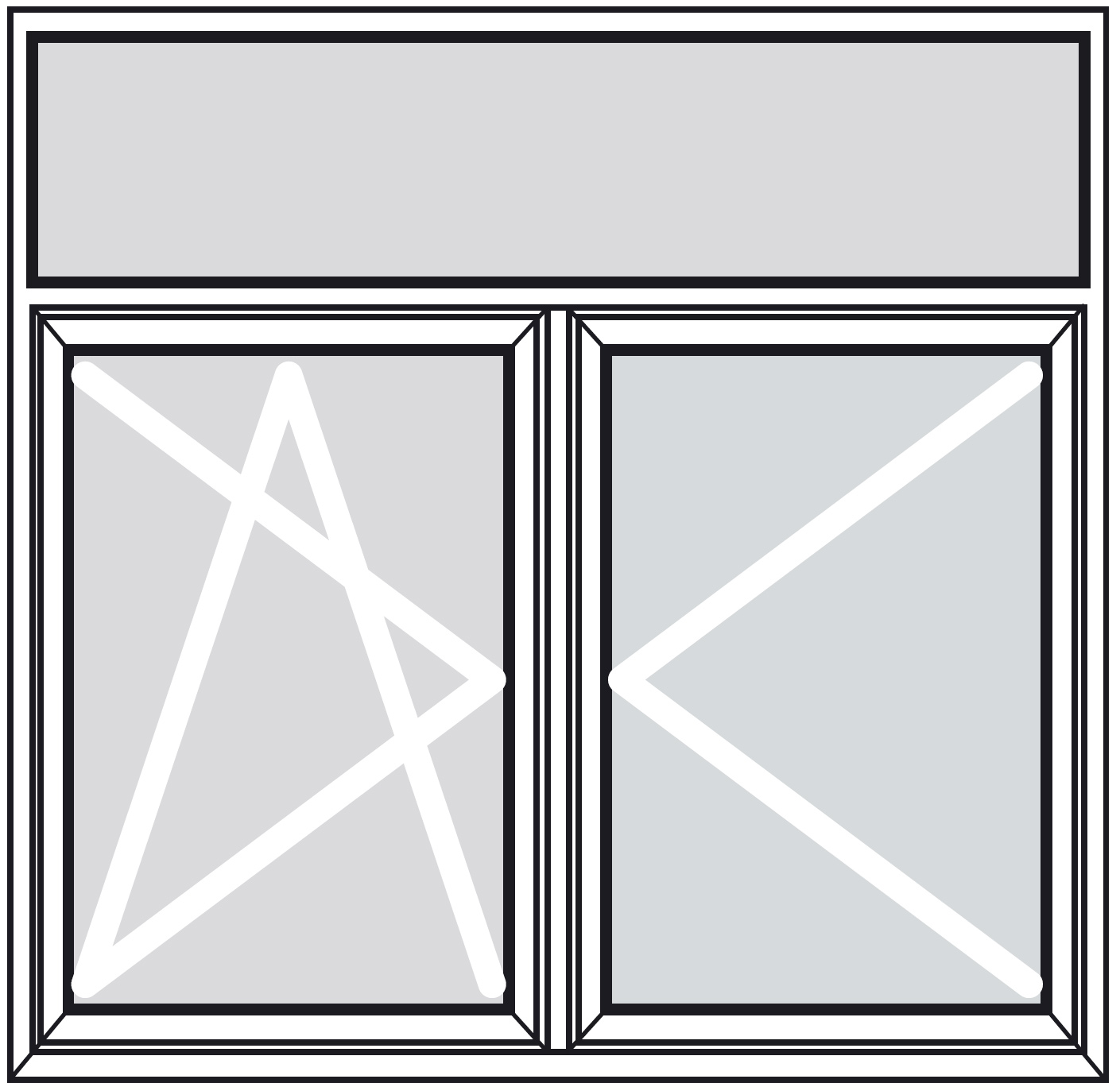

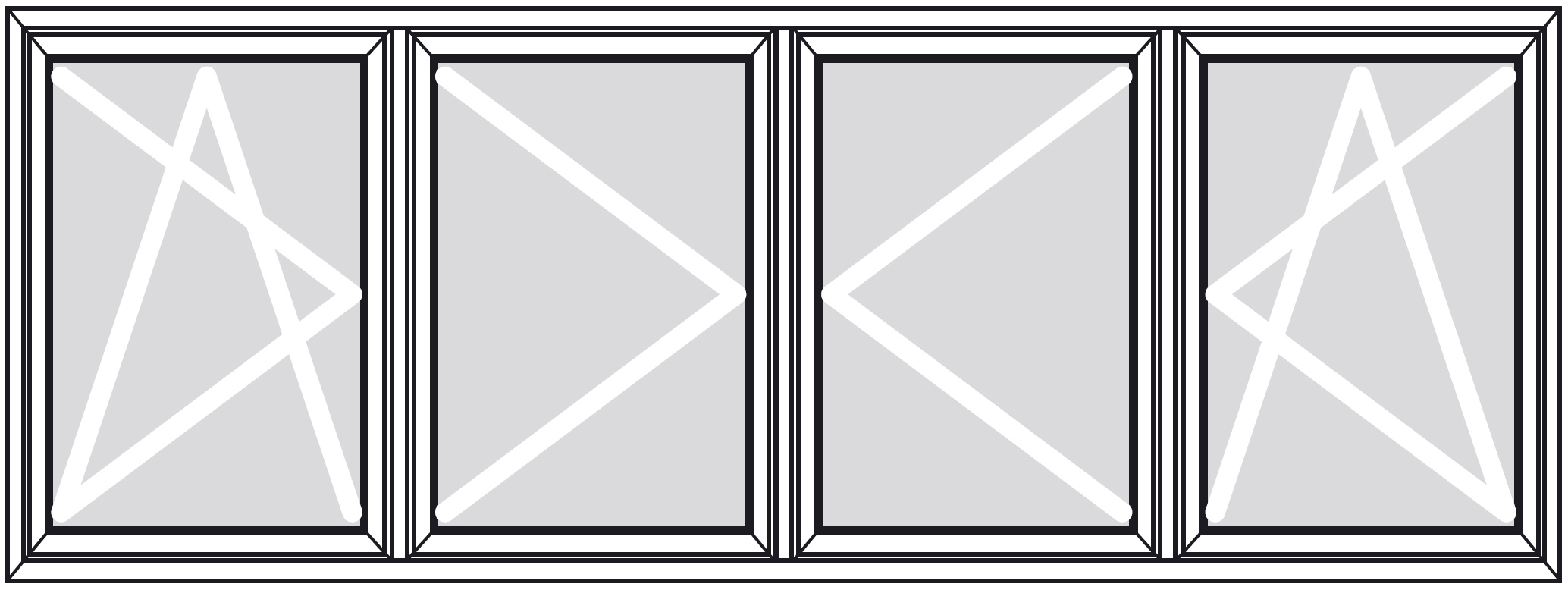

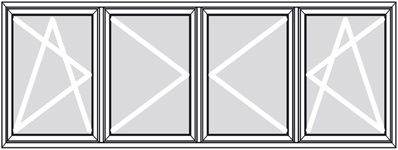

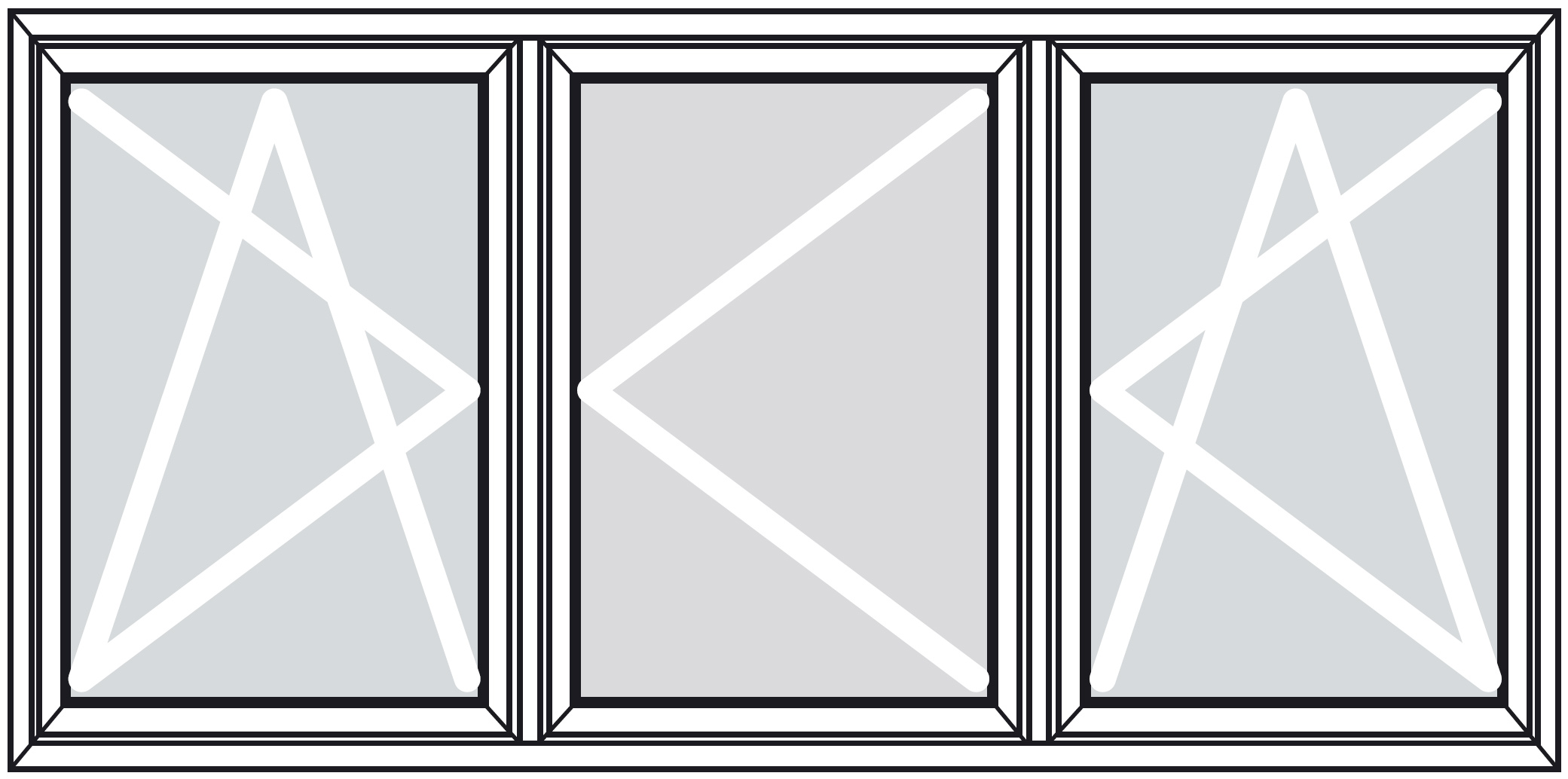

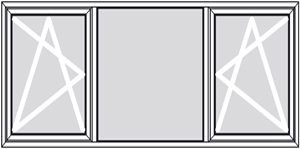

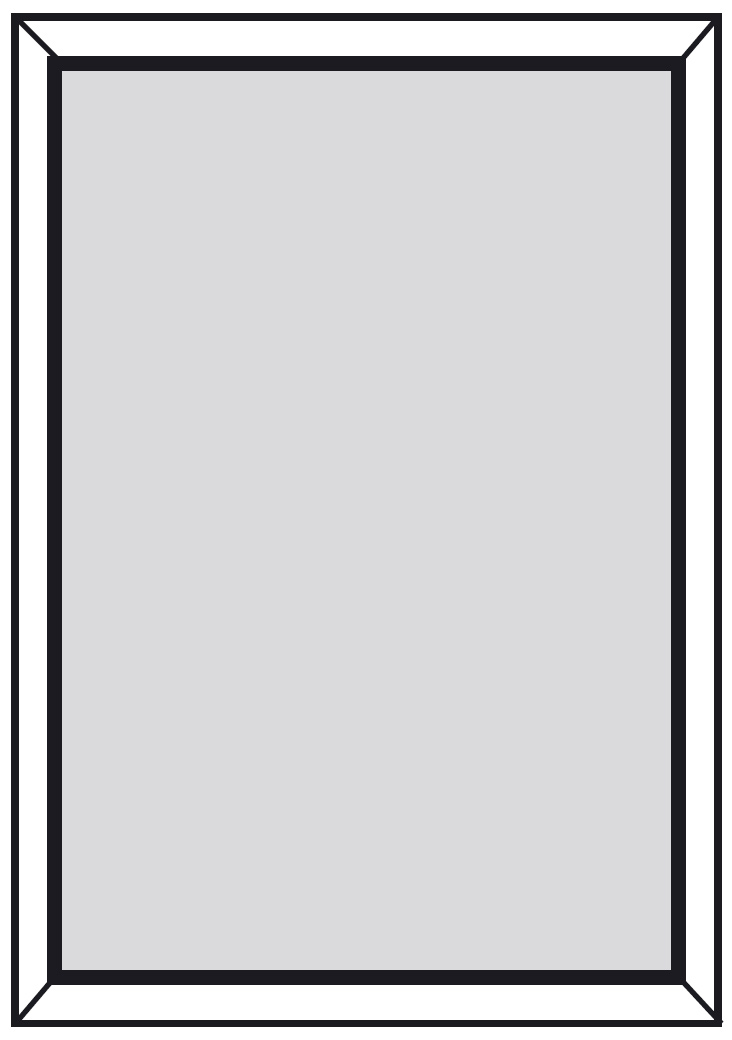

Sash depth: 84 mm Weight limit of the sash: 130 kg Maximum glass thickness: 58 mm System Type: thermal break Type of insulation: 36 mm polyamide Uf value: from 1.9 W / (m²K) Natural physical characteristics: Thermal insulation value -ΕΝ ISO 10077-2 Air permeability -EN 12207 Tightness against driving rain -EN 12208 Wind resistance -EN 12210 Types:Product certificates: |
