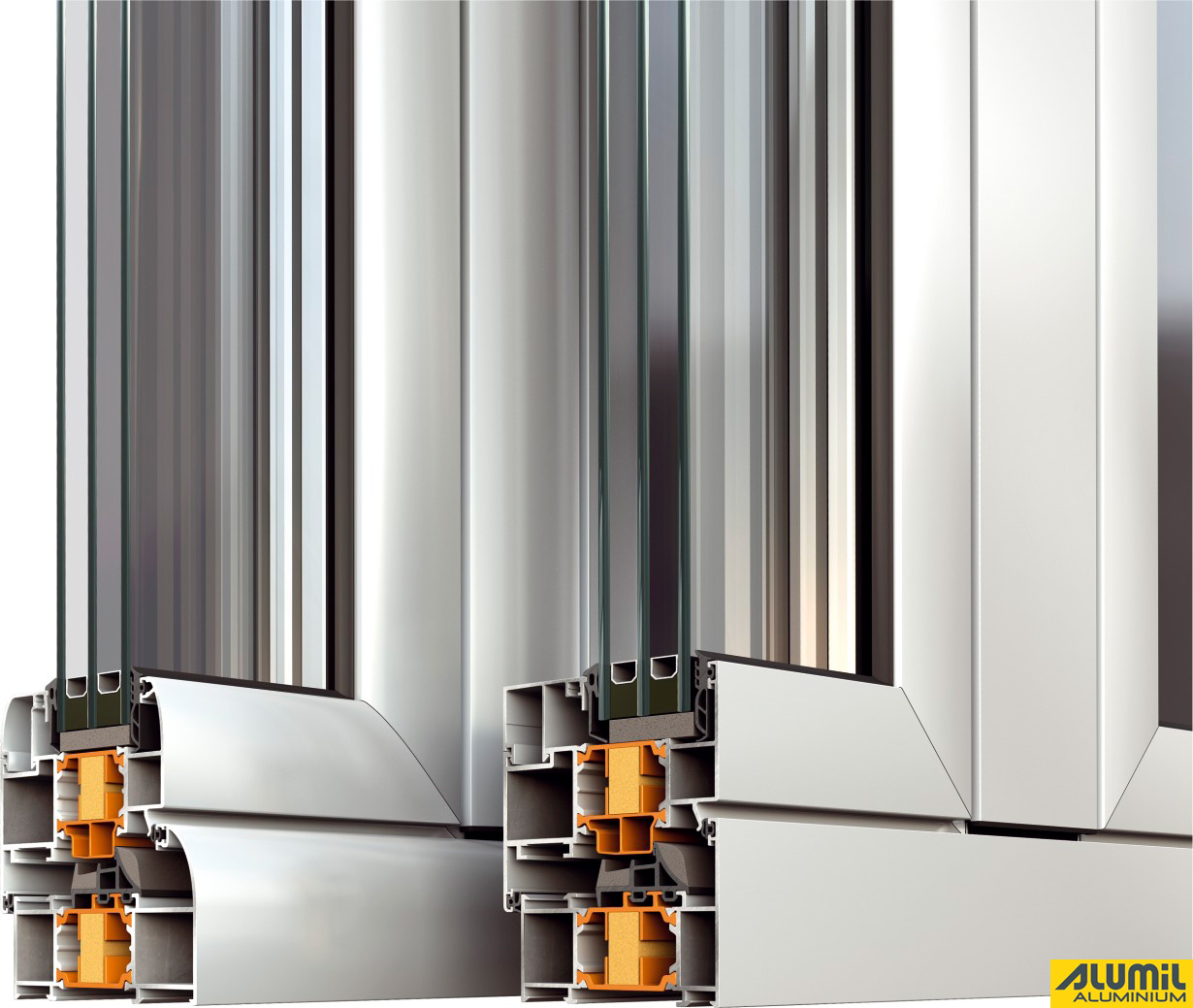

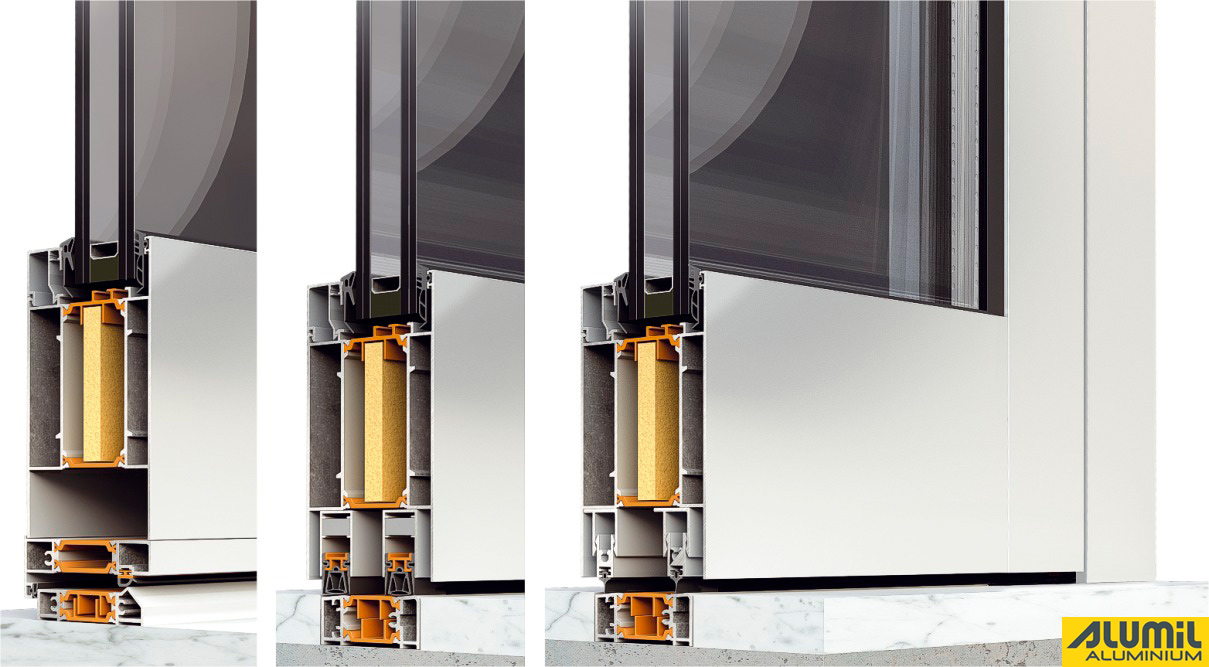

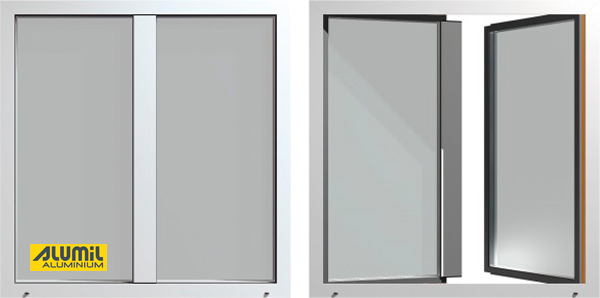

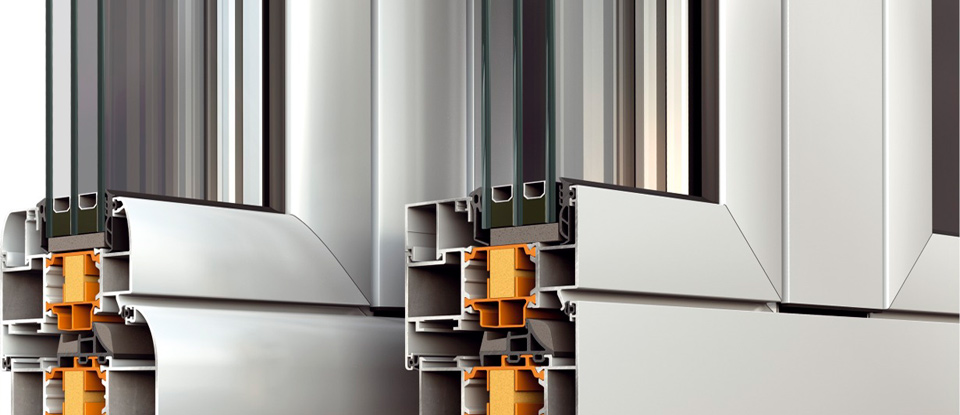

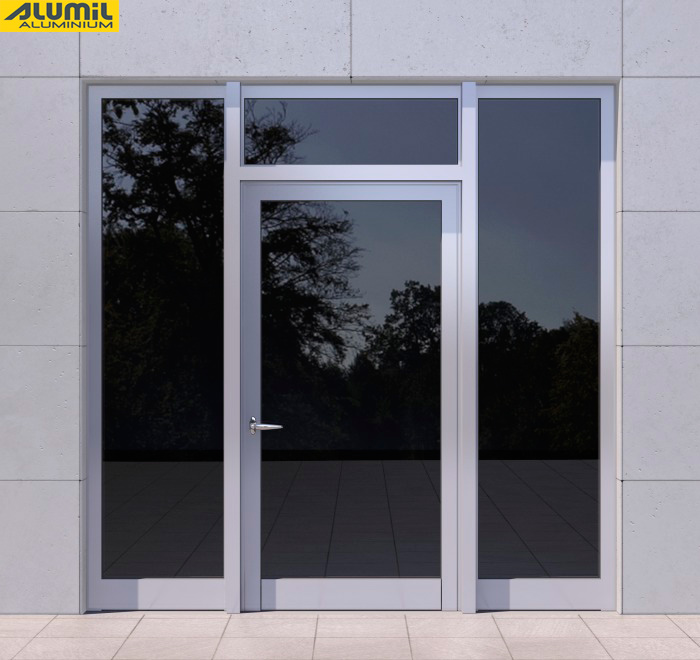

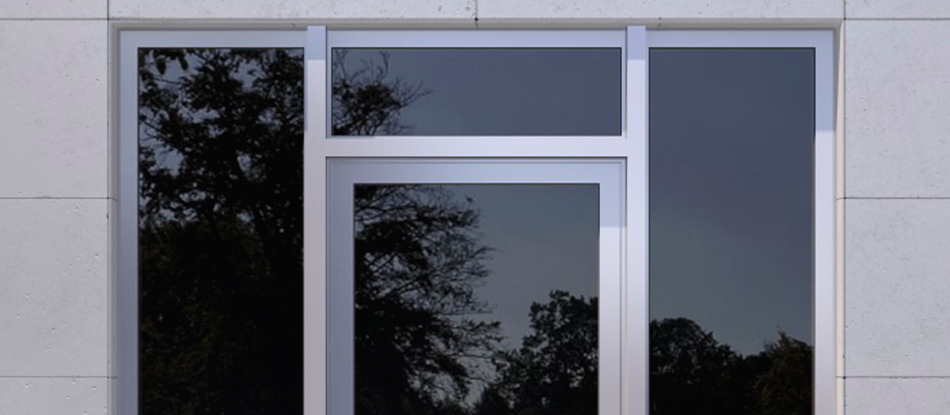

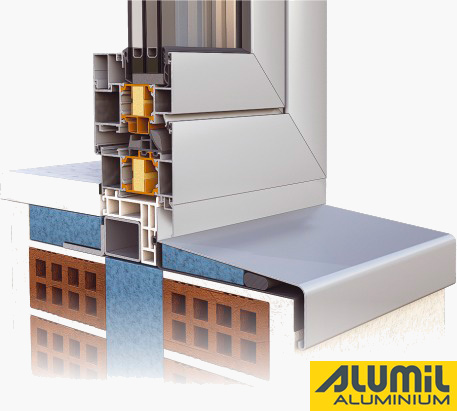

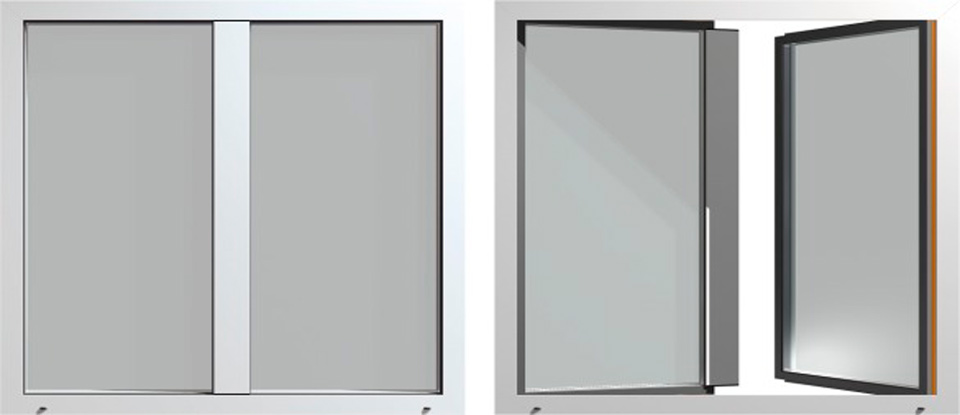

Aluminium doors / Alumil S60S60 series. A window and door system for all types of window and door types with low energy consumption. Special Features
- A variety of design options, from flush, over soft line, offset design to classic (listed building)

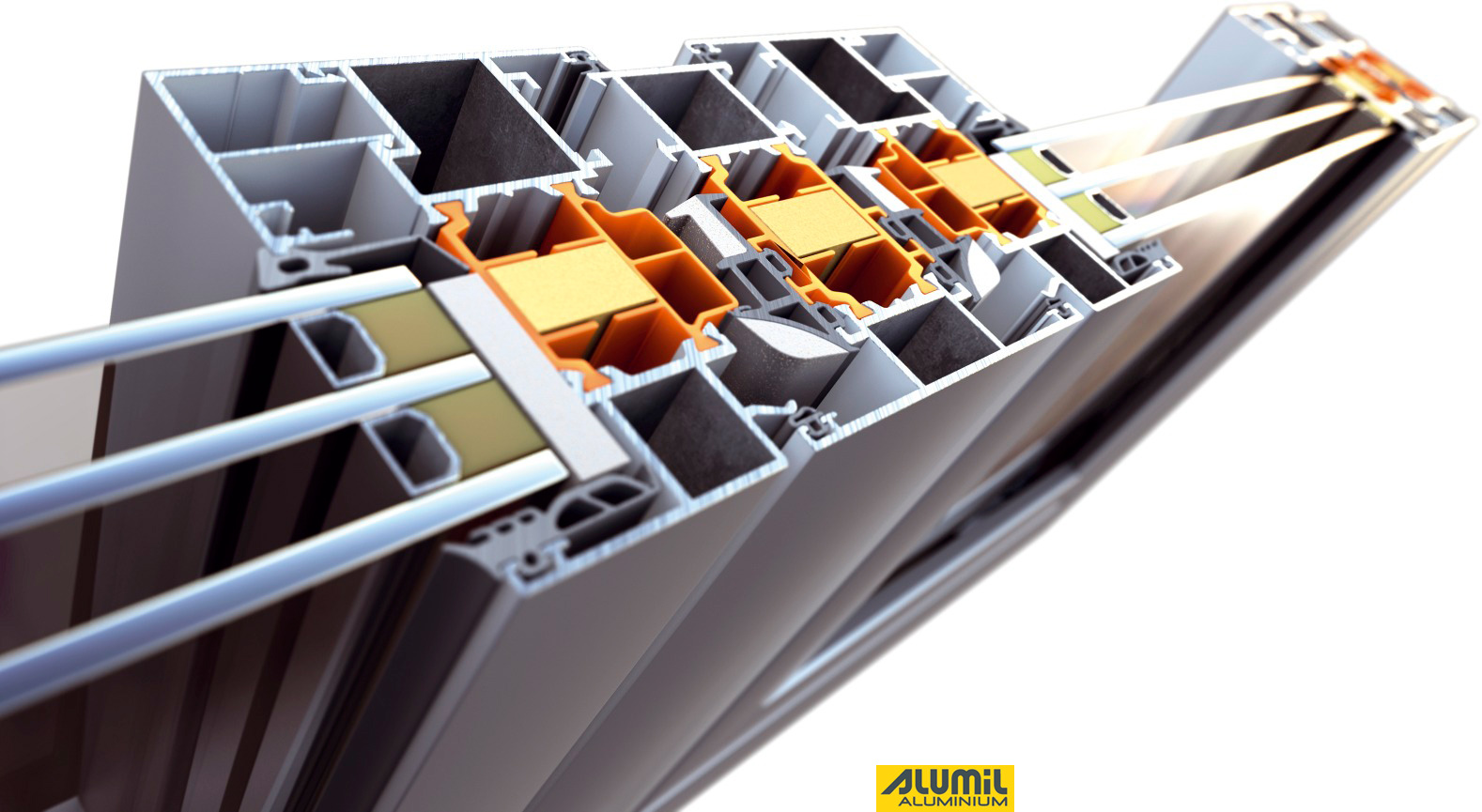

- The use of fully concealed hinges, butt hinges and lying bands is possible. - Another component of this system are block windows with low-energy standard. - Excellent for large window areas. - Low energy standard is achieved through the use of 38mm nylon spacers, which are insulated with highly insulating, special polyurethane cores. - The result is an excellent thermal insulation value of up to 0.98 W / (m²K).
Technical specifications:
Frame depth: 76.5 mm
Sash depth: 84 mm Weight limit of the sash: 130 kg Maximum glass thickness: 62 mm System Type: thermally separated and isolated Type of insulation: 34 mm polyamide U-value: 0.98 W / (m²K) Natural physical characteristics: Thermal insulation value -ΕΝ ISO 10077-2 Air permeability -EN 12207 Tightness against driving rain -EN 12208 Wind resistance -EN 12210 Types:
Product certificates: |
