Aluminium sliding doors / Alumil M23300

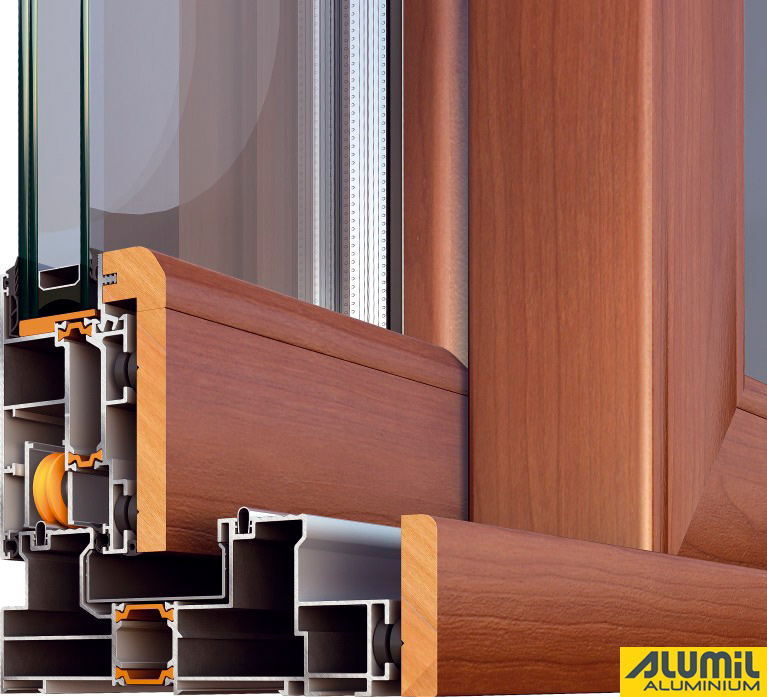

M23300 series. Combine the top quality of aluminum with the beauty of natural wood.



Special Features

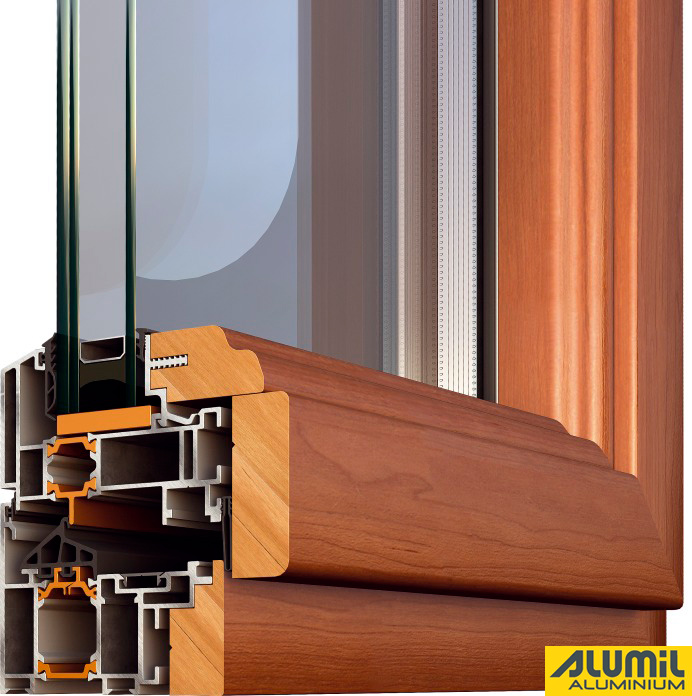

M23000 M23300 and are Alumils exclusive solutions for thermally insulated aluminum timber systems combine both high thermal and sound insulation requirements and burglary. Both systems provide ideal solutions that combine the top quality of aluminum with the beauty of natural wood.

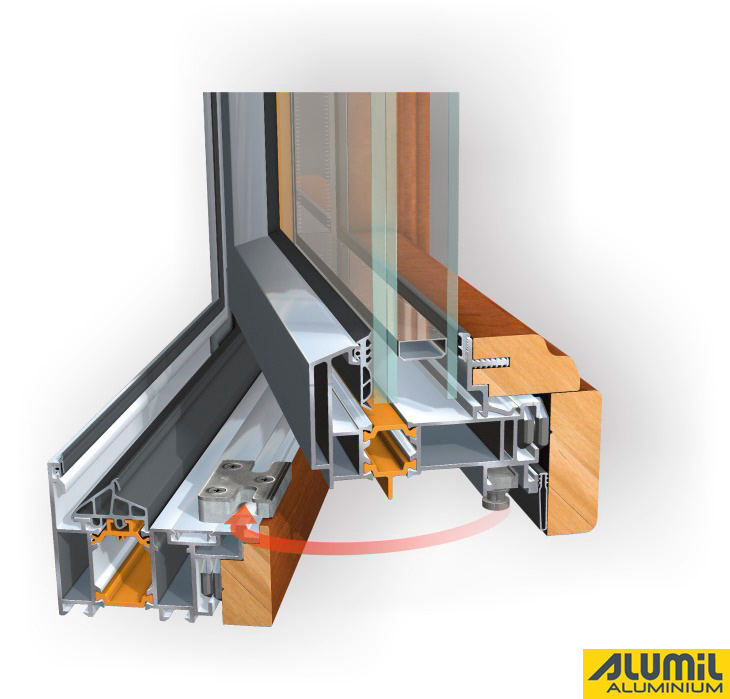

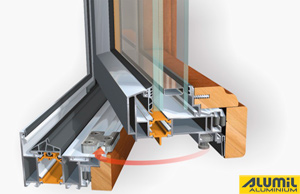

The combination of the two materials is produced by a sophisticated clip system, which allows ventilation and thus prevents the formation of condensation within the construction. M23000 is the solution for high security windows using proven security fittings with 13mm axle, mushroom pin transmissions and security strike plates. This structure improves protection against intruders and delays the decline by 30 minutes as the RC3 certificate of IFT Rosenheim occupied. At the same time lead 24mm deep nylon spacers between the aluminum trays to increased thermal insulation of Uf = 2,1W / m²K.

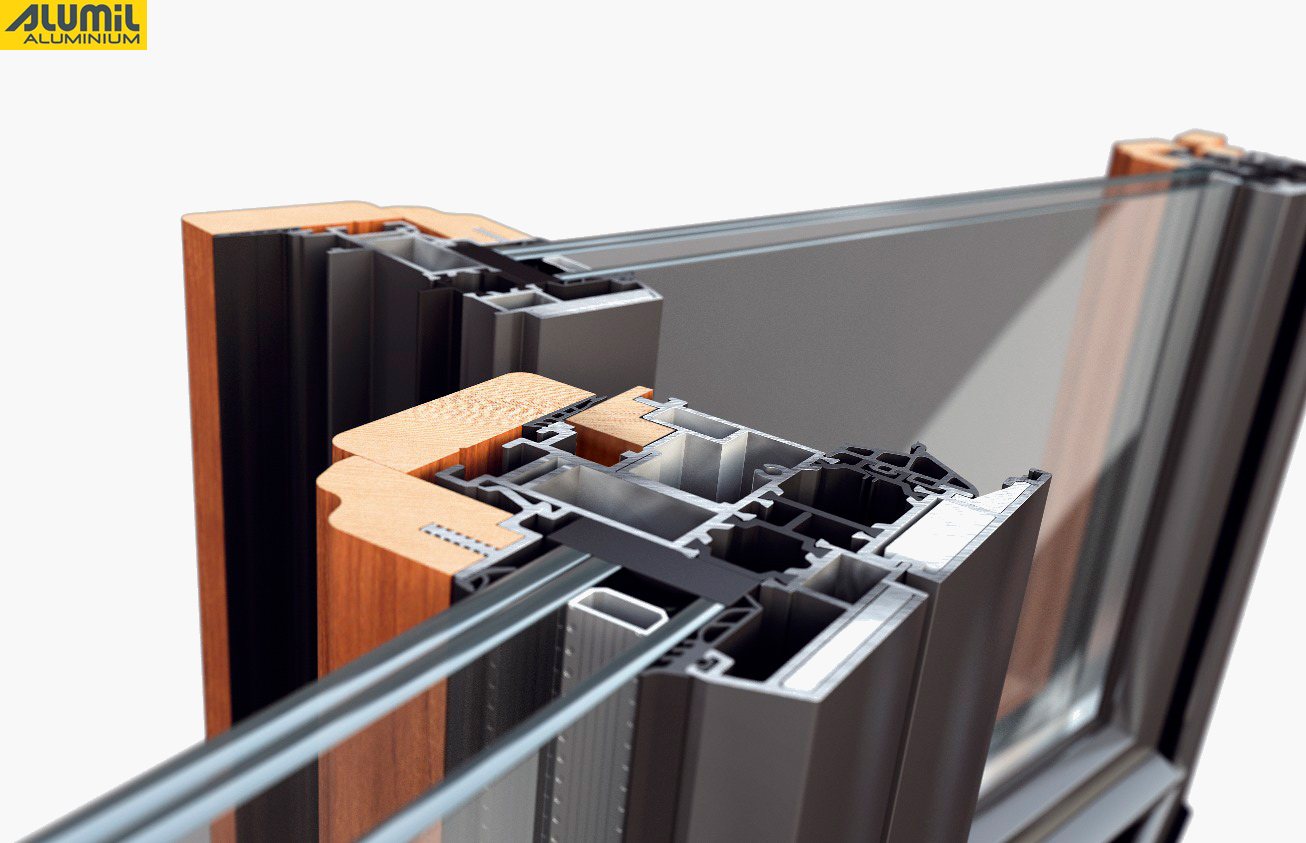

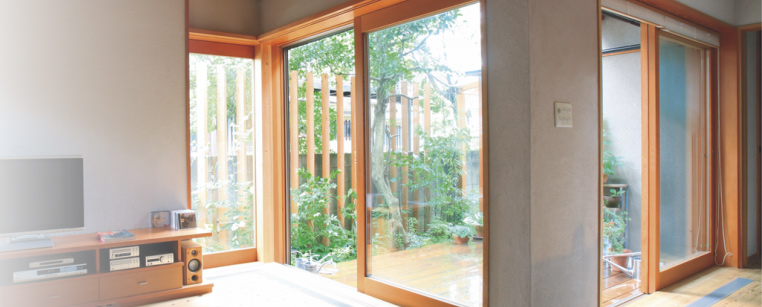

This system gives you the possibility to construct lifting sliding windows and doors; ideal for the design of large-scale building openings. These structures are designed to a sash weight of 240kg and a glass thickness of 46mm. Stainless steel rails provide an excellent running behavior of the moving elements.








Technical specifications:

Type: Lift & Slide
Mechanism: GU-line
Frame depth: 114.5 mm
Sash depth: 45 mm
Weight limit of the sash: 150 kg
Maximum glass thickness: 28 mm
System Type: thermal break
Type of insulation: 24 mm polyamide
U-value: 4.26 W / (m²K)

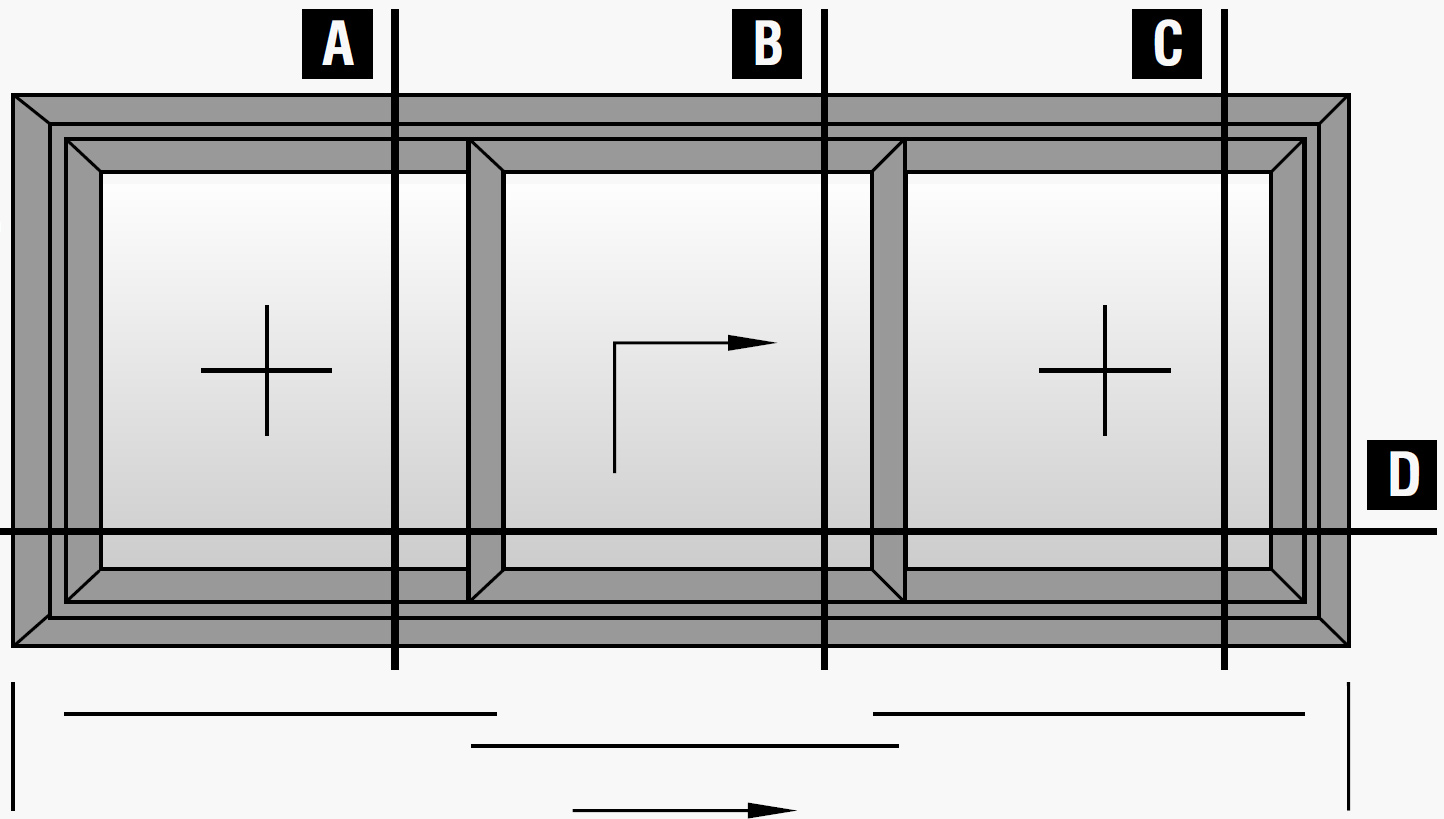

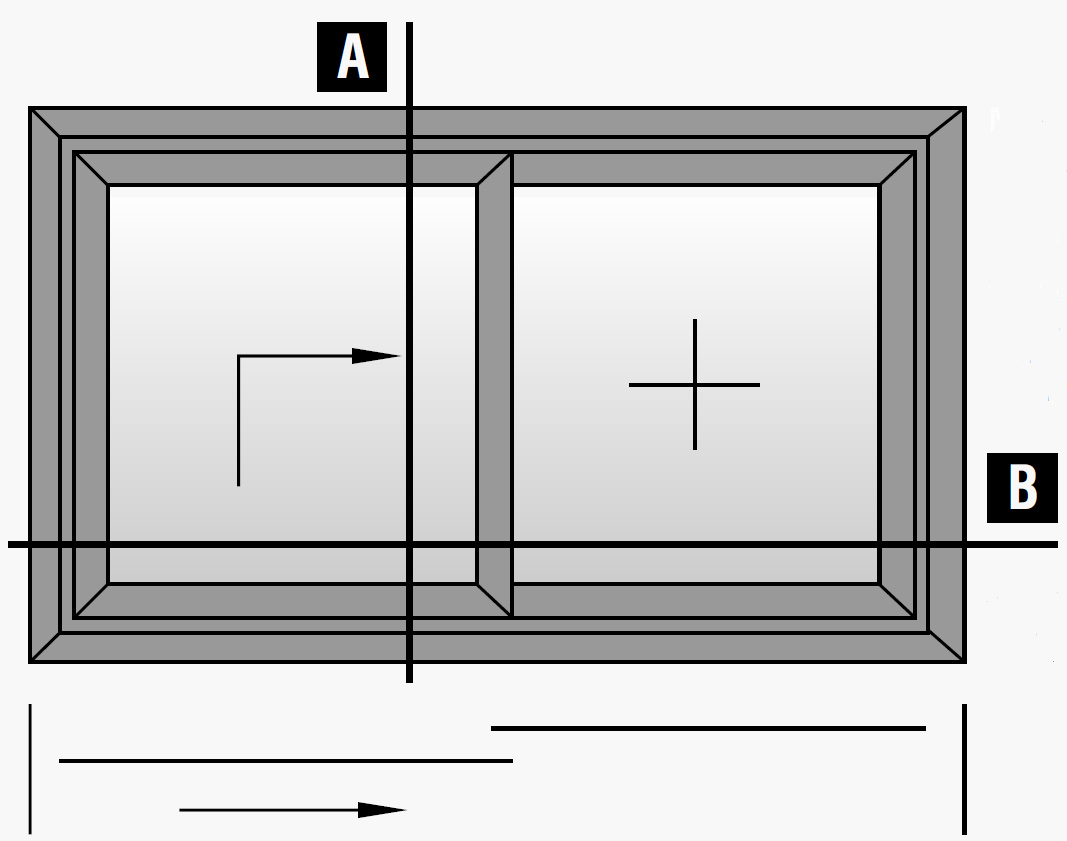

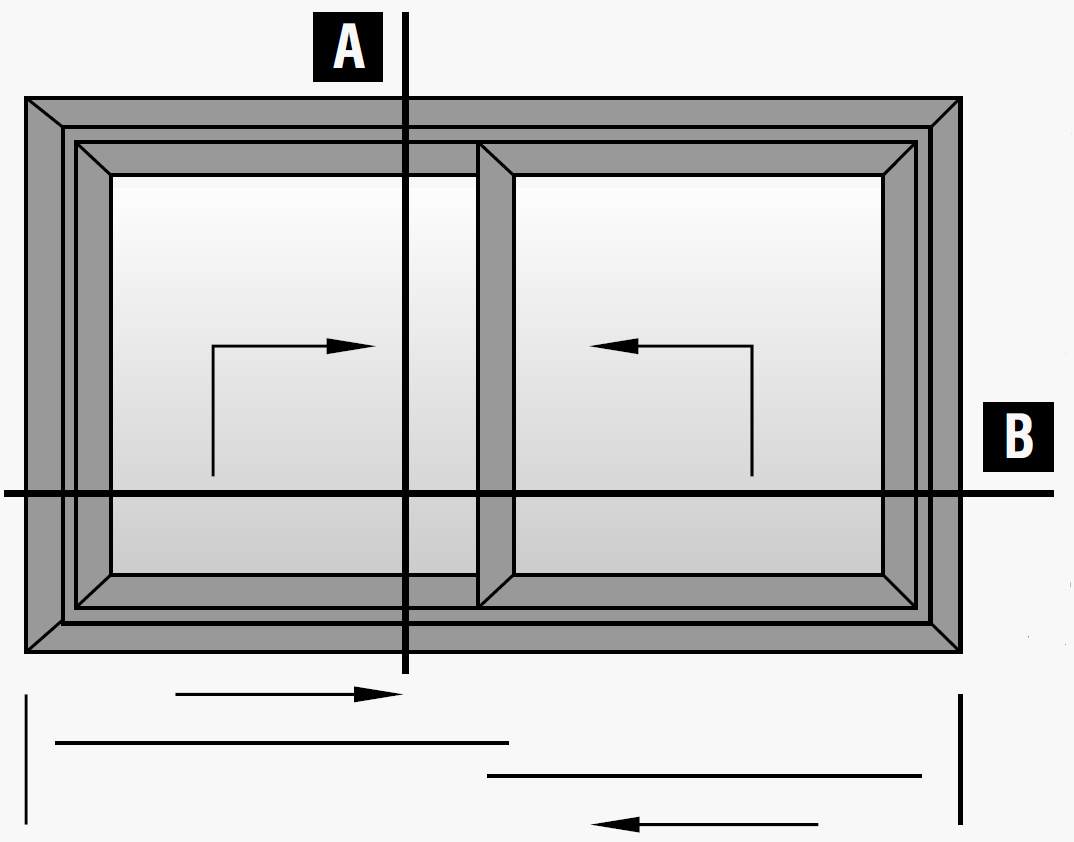

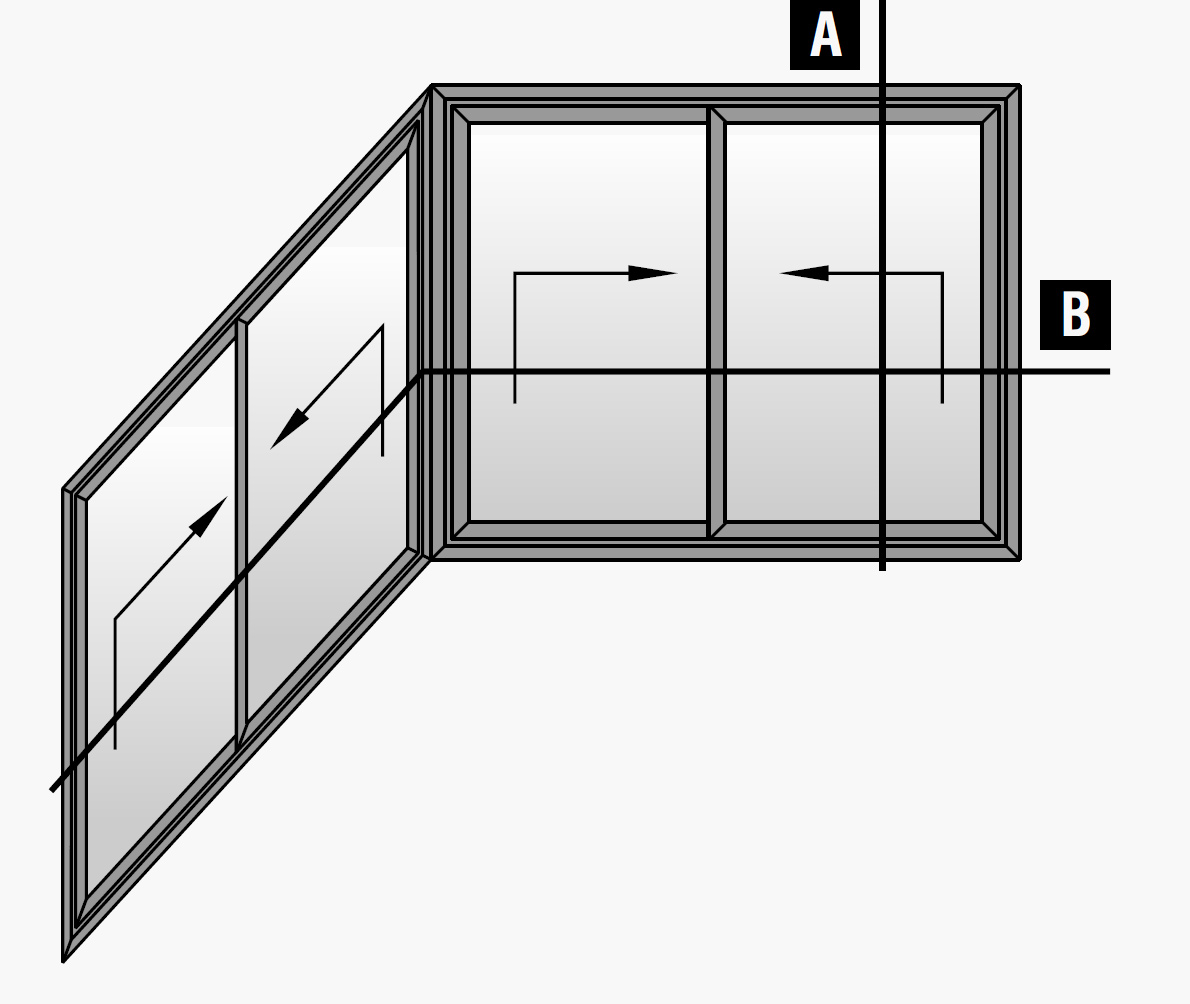

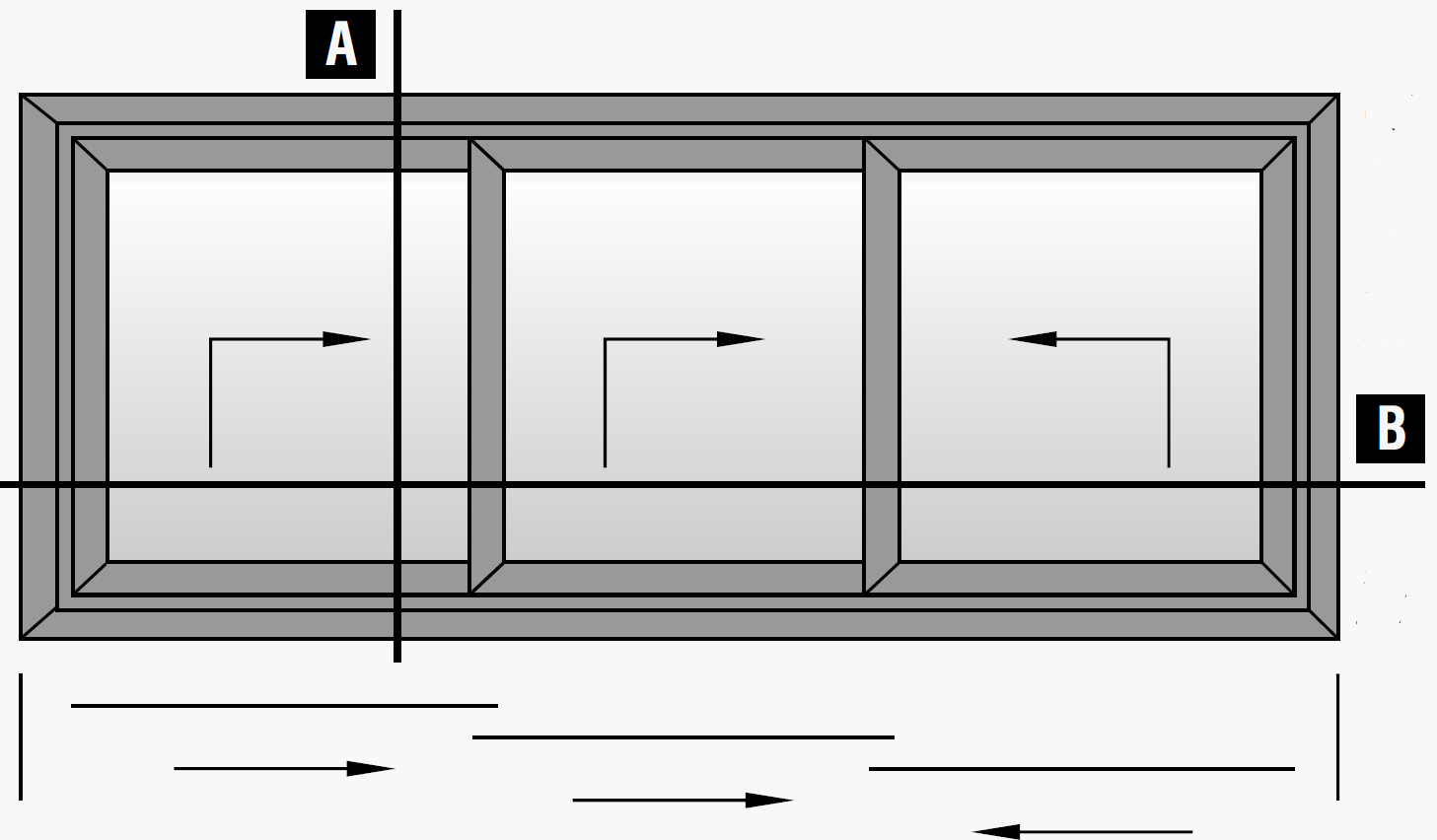

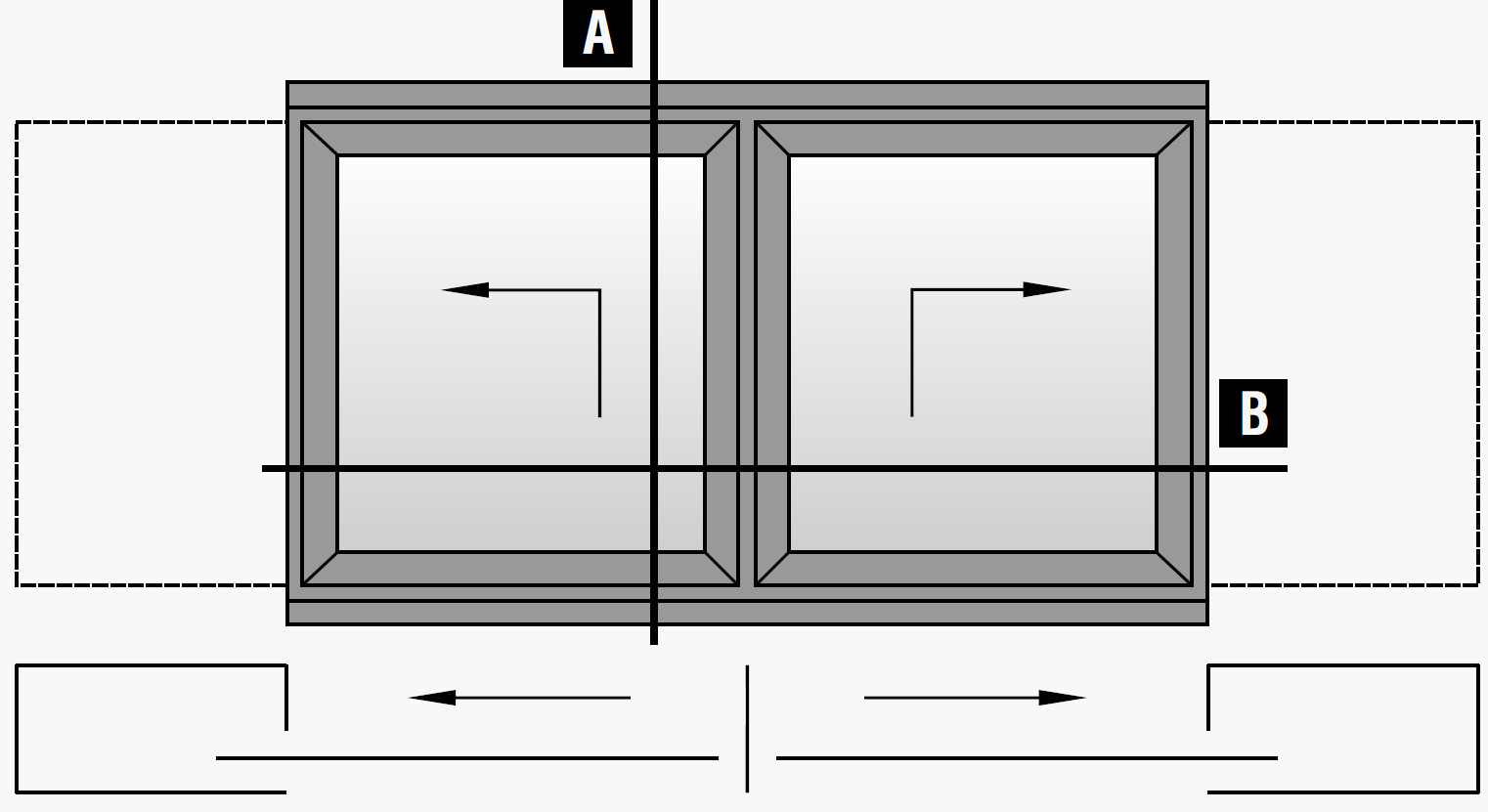

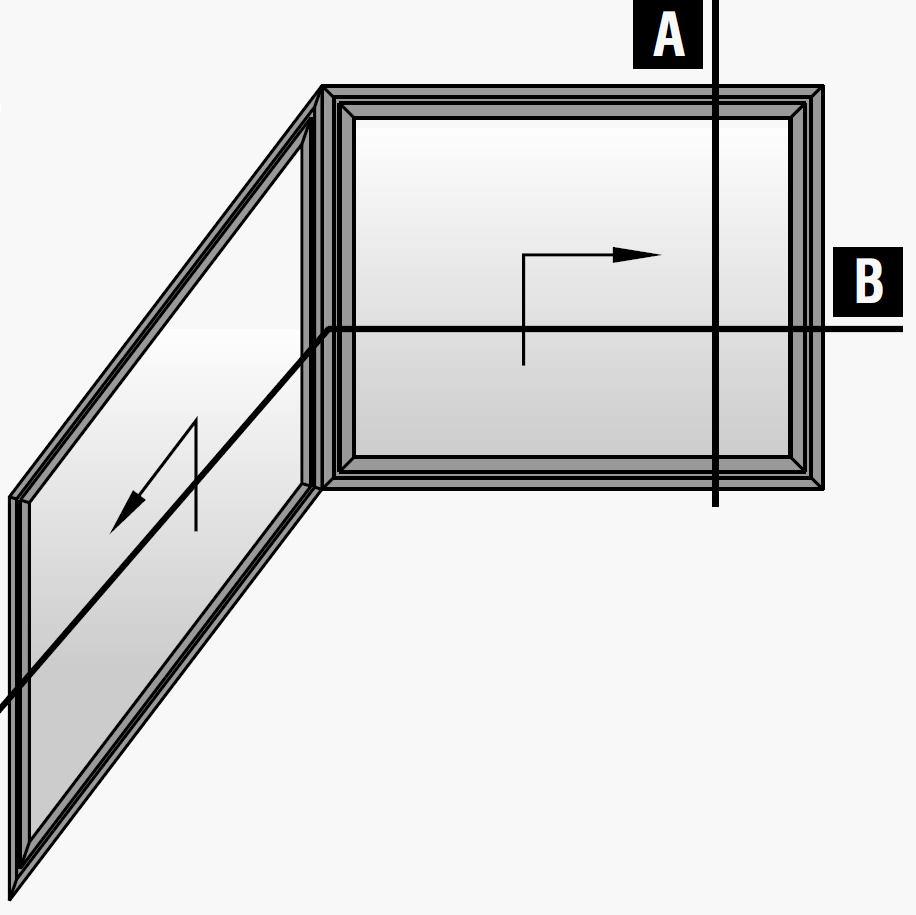

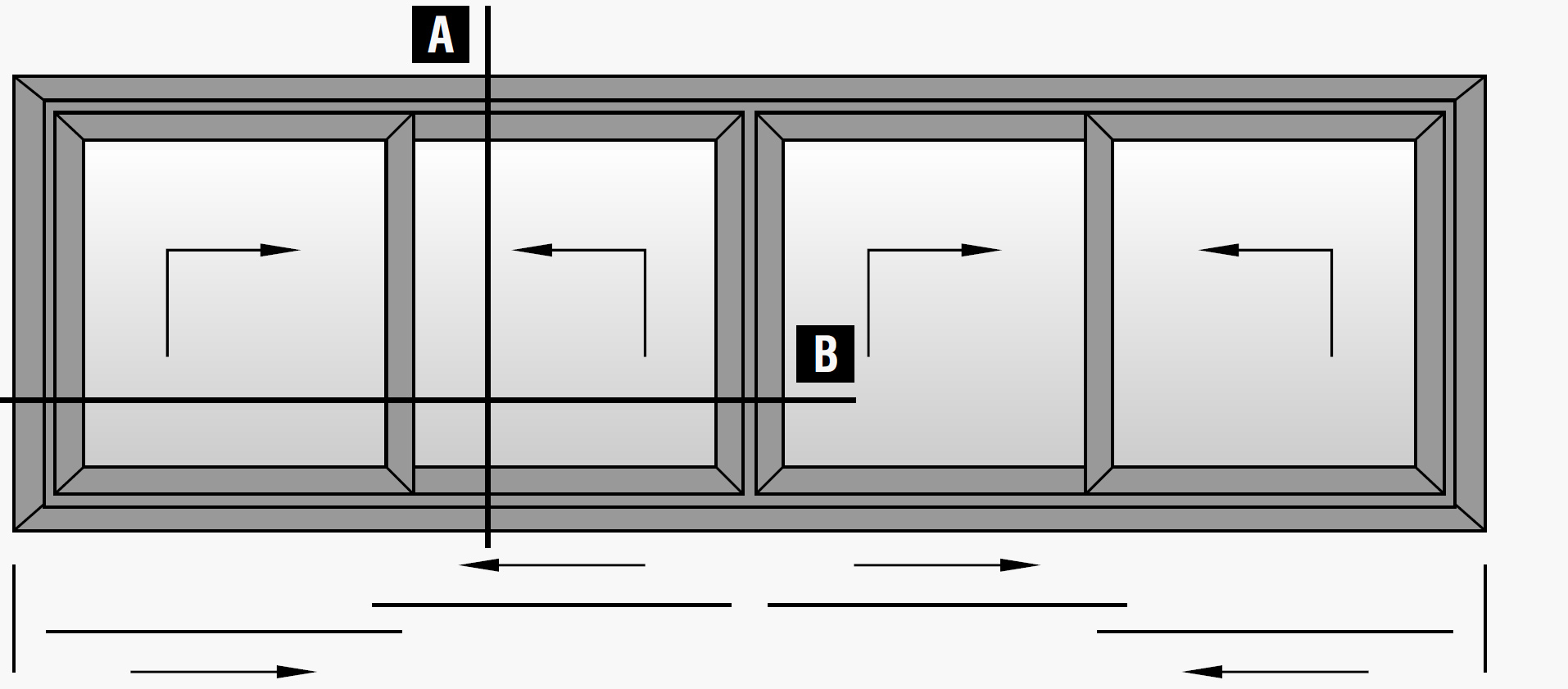

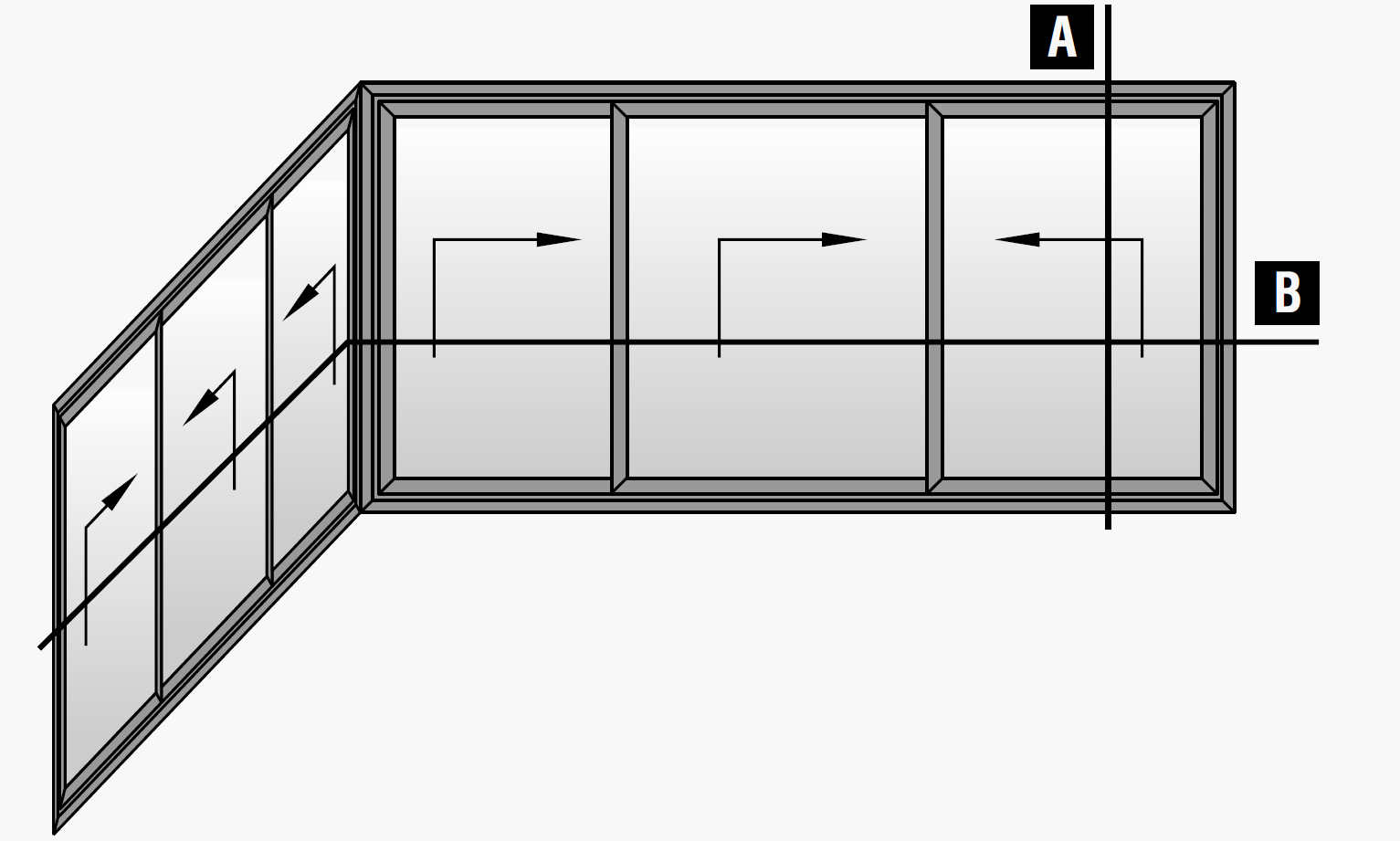

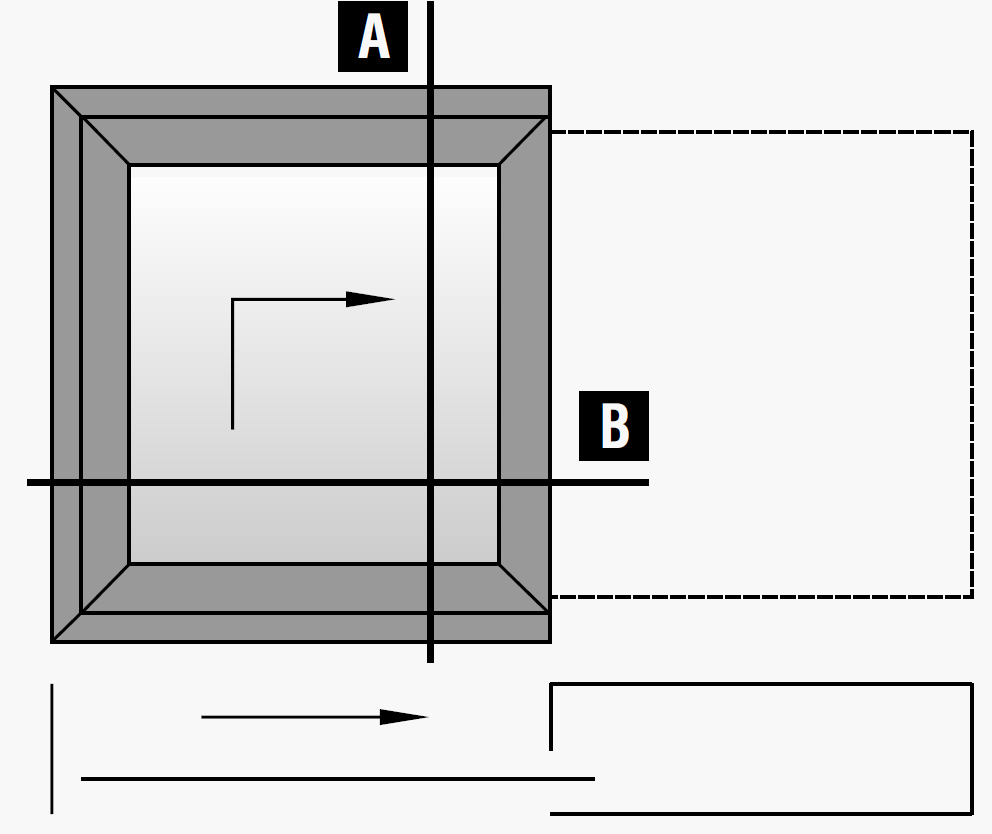

Types:











Product certificates:
