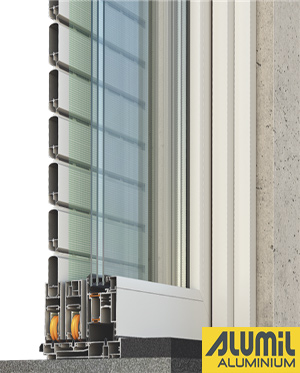

Aluminium sliding doors / Alumil S700

S700 series. For large building openings.

Special Features

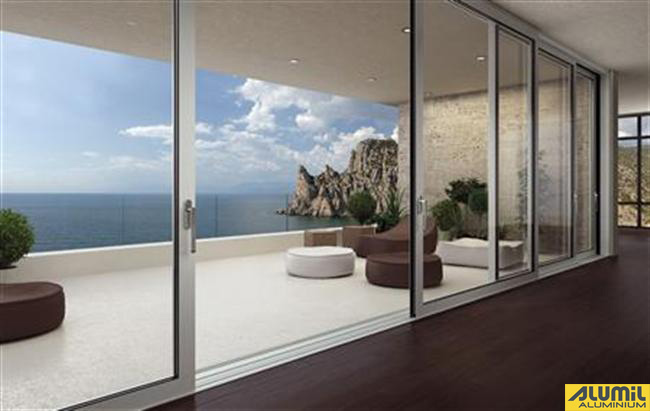

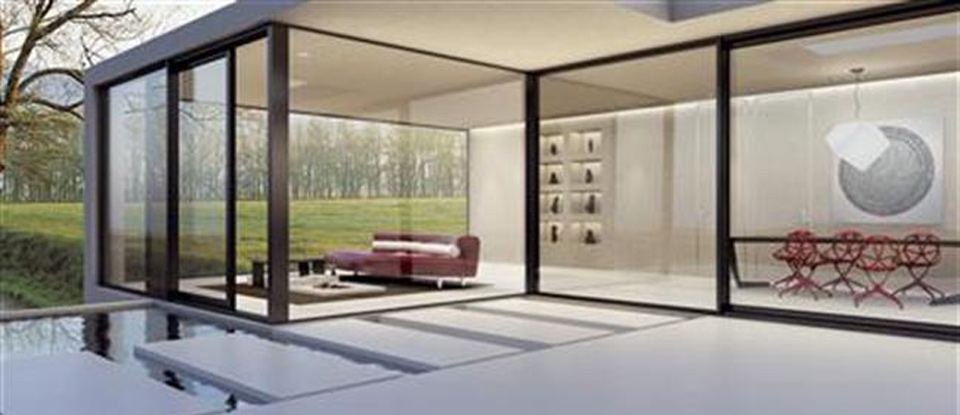

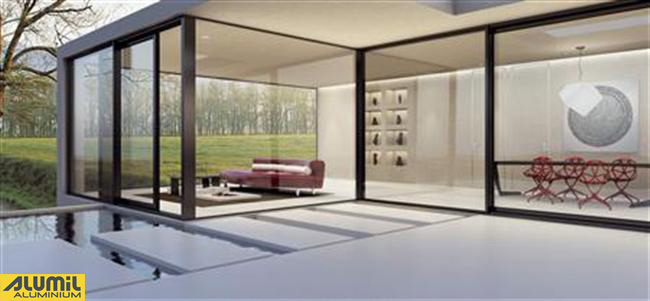

S700 is a unique lifting sliding system for very large building openings. It is characterized by unrivaled properties:

- Very Narrow sash view of only 84mm

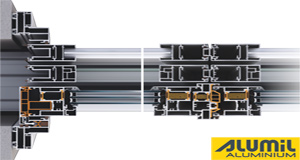

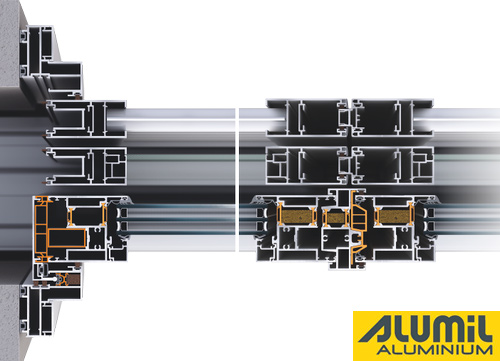

- Ansichtsbreite The interlock is only 47mm for 2-leaf elements. With a maximum element height up to 3.00 m, this leads to an unparalleled viewing.

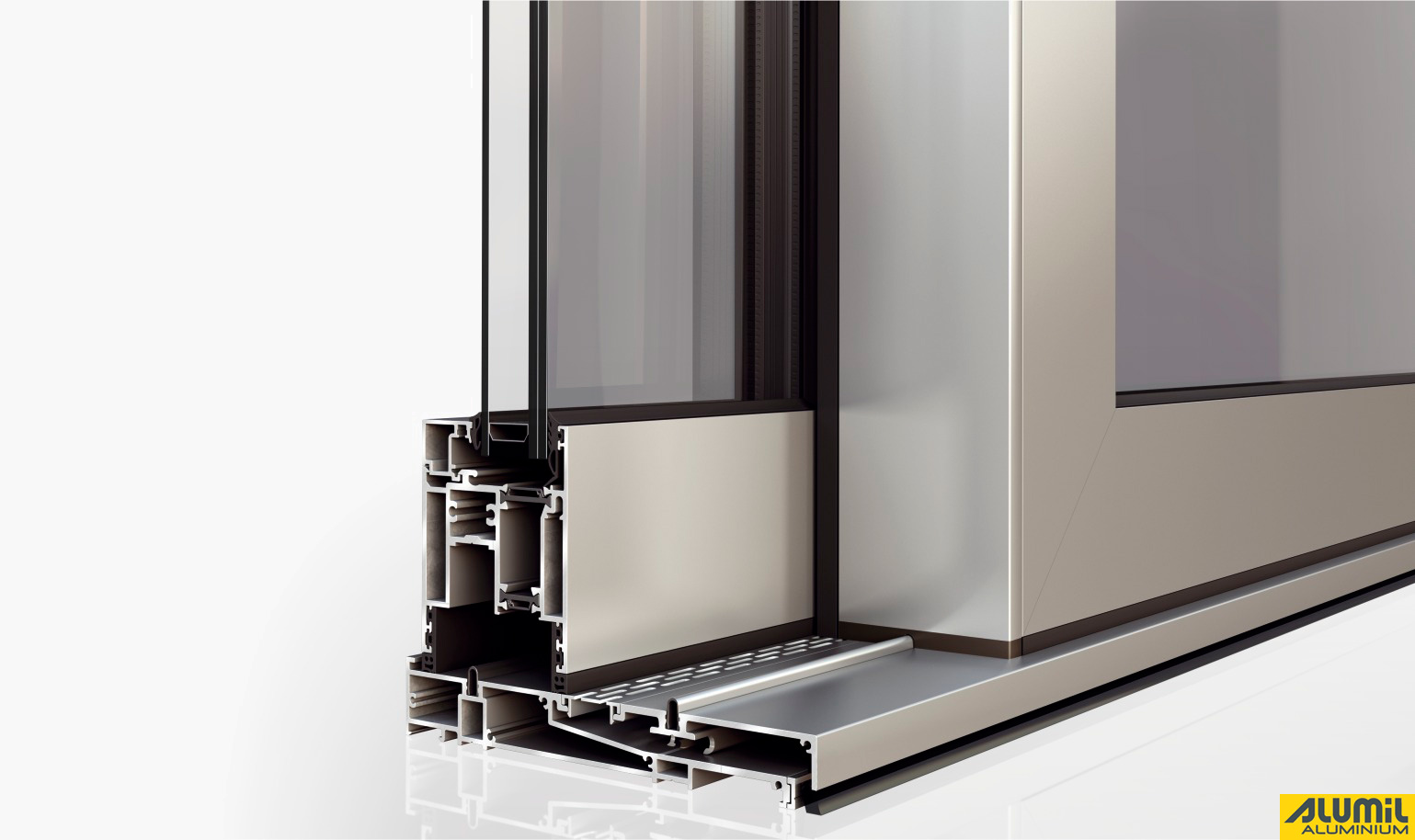

- Bodenebene Threshold.

- Intelligent Drainage, which shows its effectiveness especially when it rains.

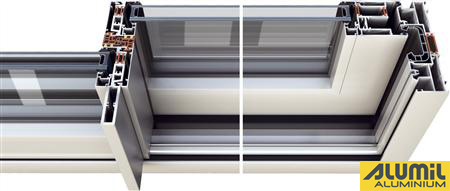

- A Well sophisticated drainage system below the mean rollover (Interlock) ensures a controlled drainage and high tightness of the structure against driving rain.

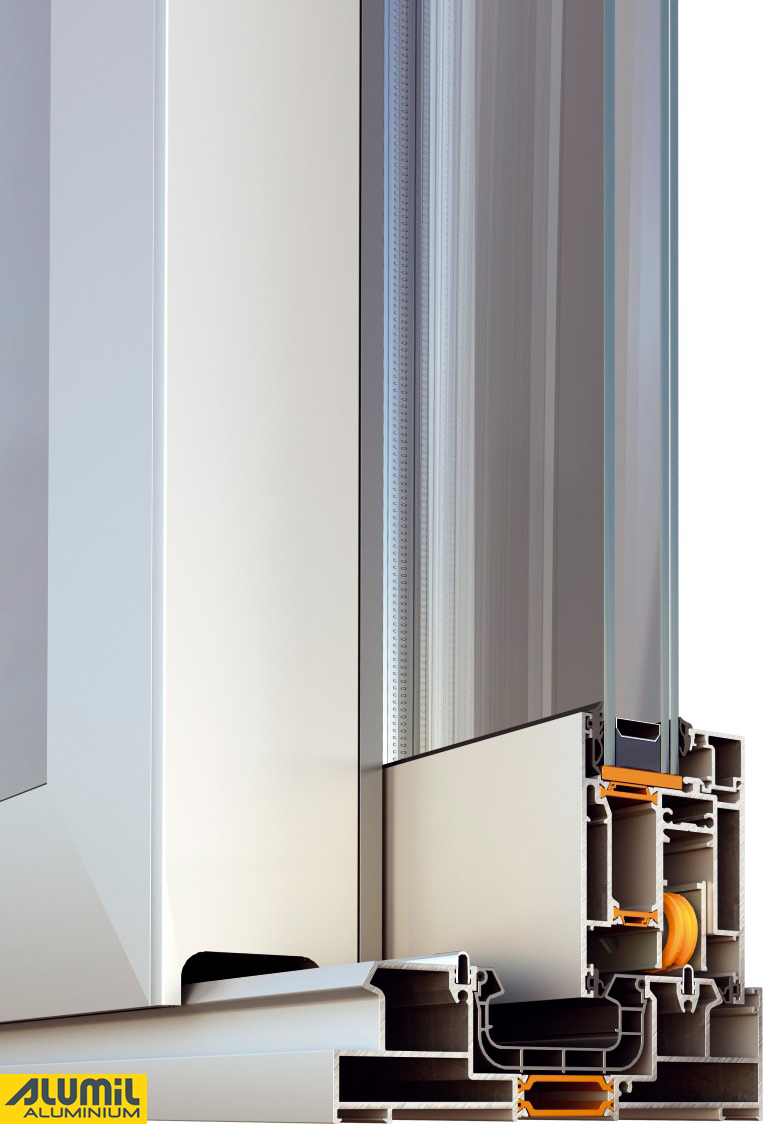

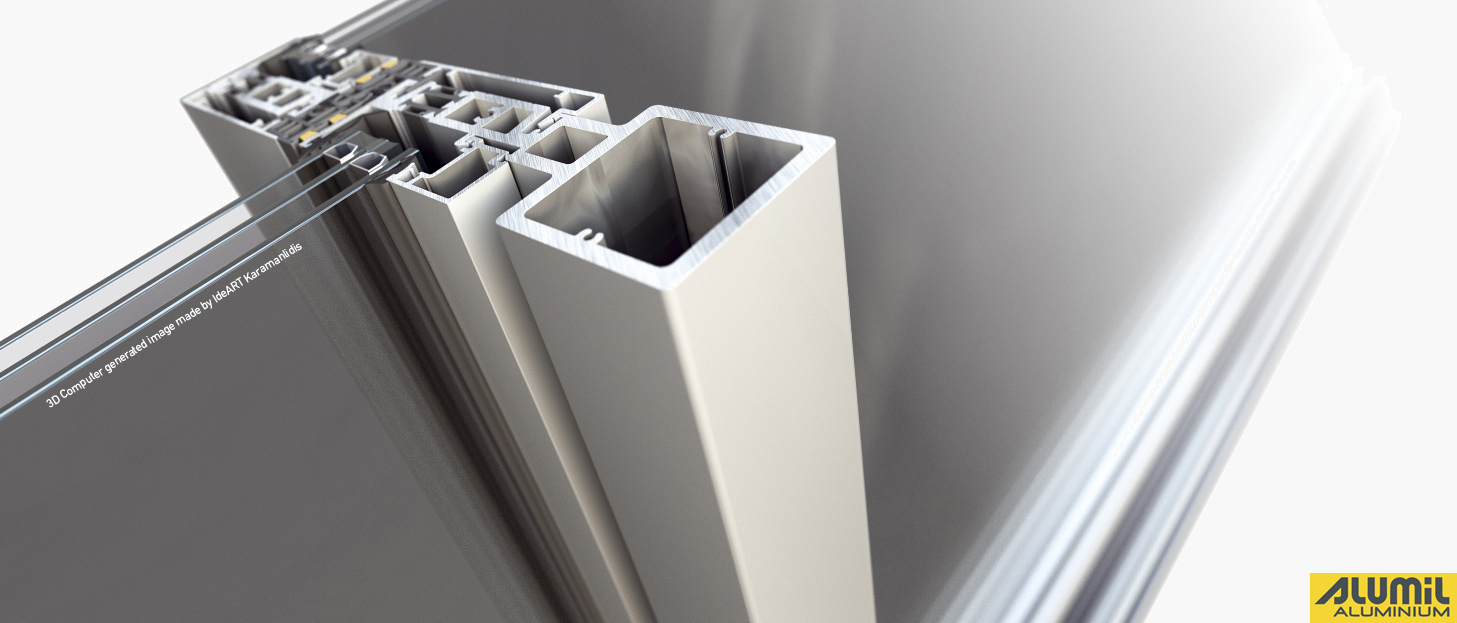

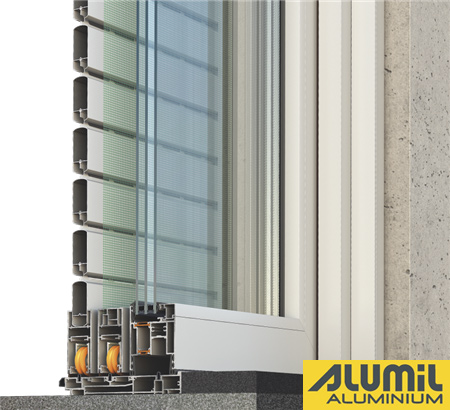

- Special 24mm nylon spacers, counteracting the deformation of the wing at widely different temperatures between interior and exterior profile.

- Very High thermal insulation (Uw up to 1.3 W / m² k).

- Can Also as a classical lifting sliding door with altered threshold, but the same frame sections are executed while maintaining the properties.

Technical specifications:

Type: Lift & Slide
Mechanism: GU-line
Frame depth: 114.5 mm
Sash depth: 45 mm
Weight limit of the sash: 150 kg
Maximum glass thickness: 28 mm
System Type: thermal break
Type of insulation: 24 mm polyamide
U-value: 4.26 W / (m²K)
