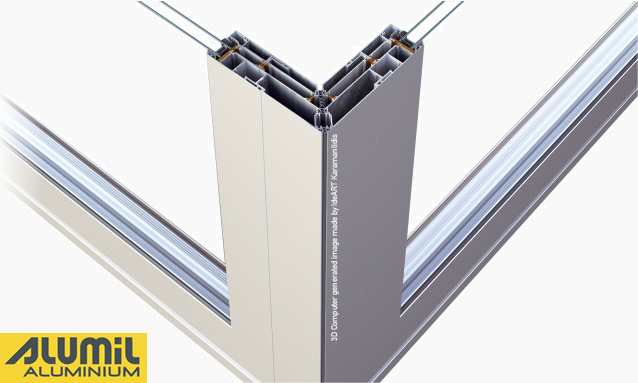

Aluminium sliding doors / Alumil M300M300 series. For higher requirements for thermal insulation.Special FeaturesM300 is a complete lifting sliding system for higher requirements for thermal insulation and for large-scale building openings. Within the system, lifting sliding doors with sash weights up to 400kg per leaf are possible. The large number of multi-track sleepers and frame gives you the opportunity to construct sashes elements, including sliding shutter and insect protection. Not to mention the unique 90 degree corner solution without corner posts or the variety of design options that we provide you with training wall pockets that run in the wings. Technical specifications:
Type: Lift & Slide
