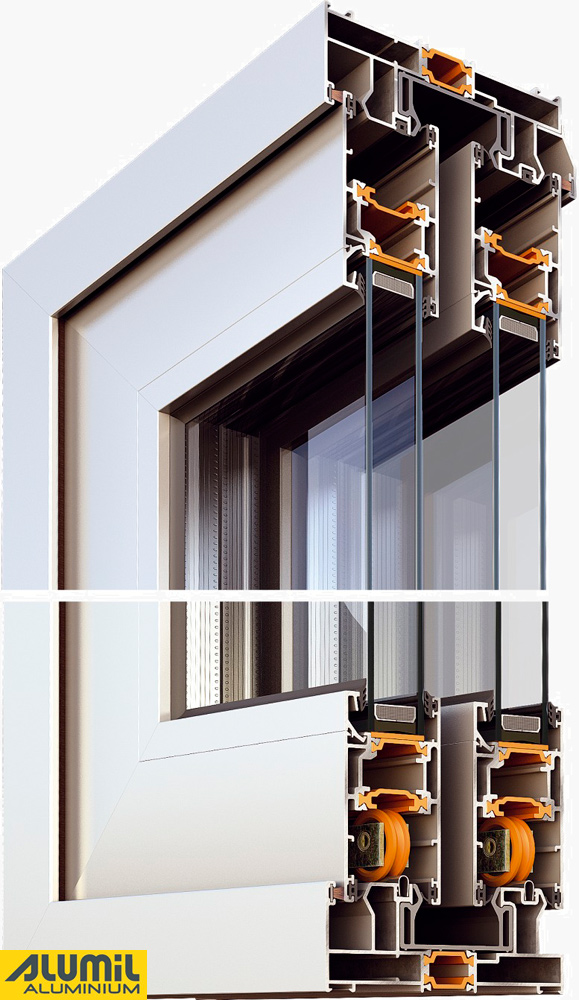

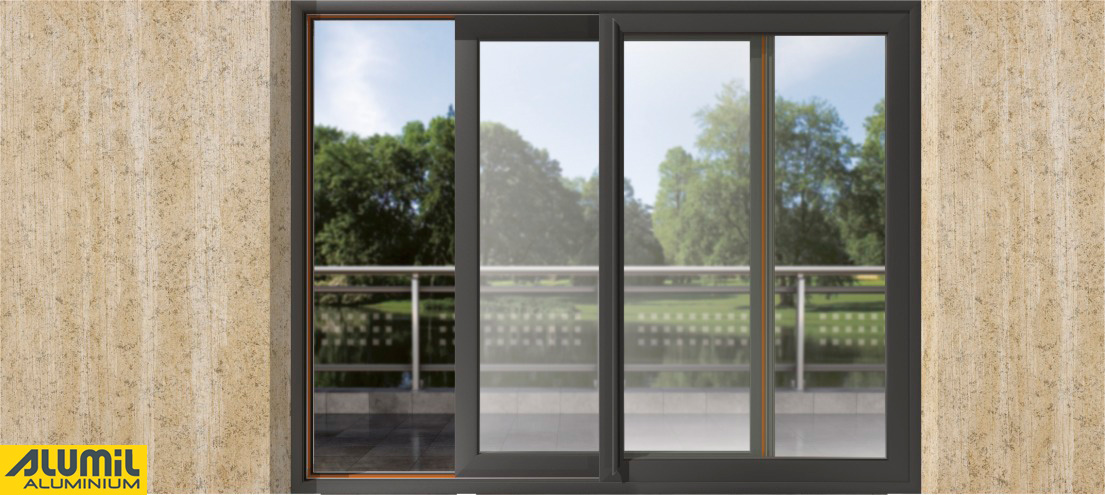

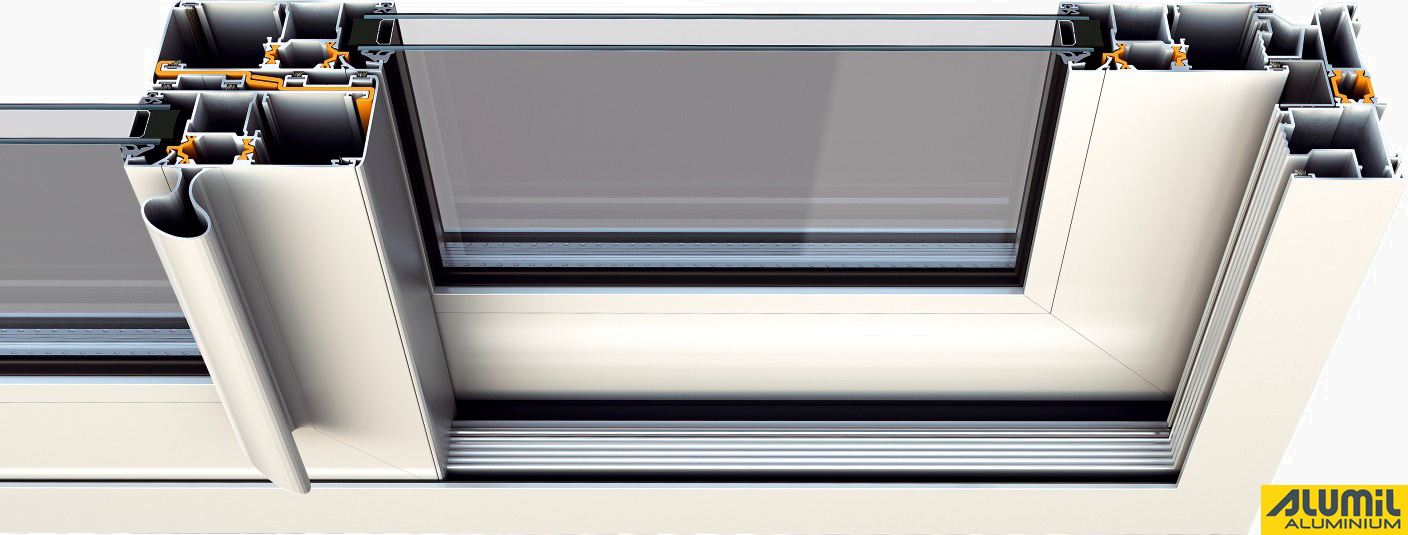

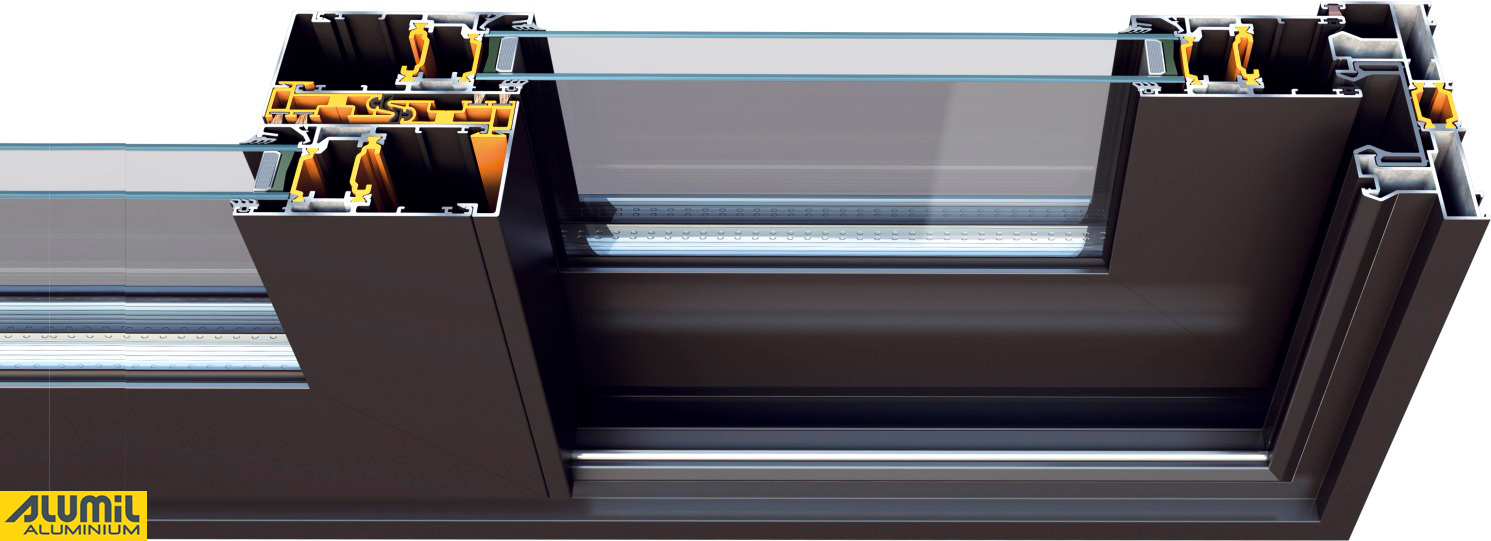

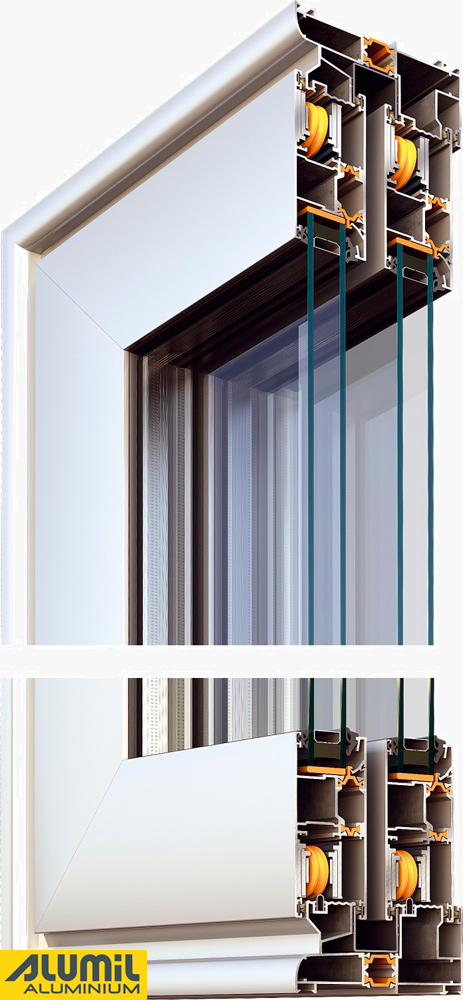

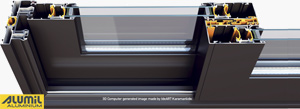

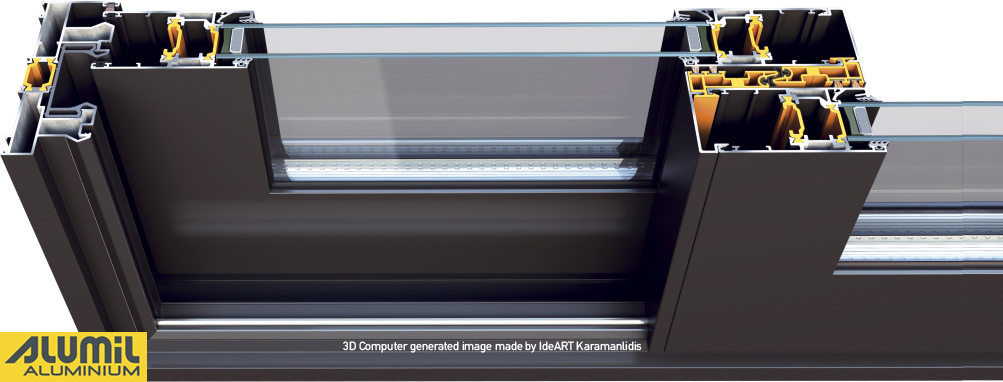

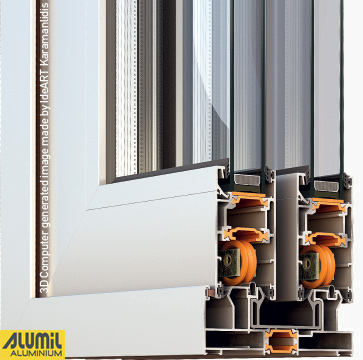

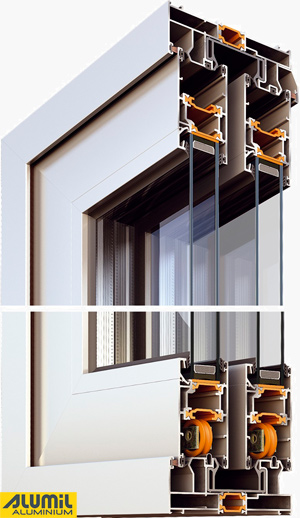

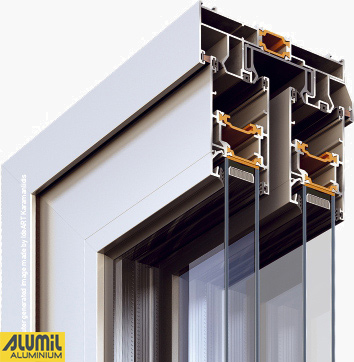

Aluminium sliding doors / Alumil S450S450 series. Versatile, thermally insulated sliding system. Special Features
S450 is a very versatile, thermally insulated sliding system for easier lifting and sliding windows or doors. It is characterized by:
- 45 mm sash - Stainless steel rails - Lift-slide version of the wing with normal steel fitting up to 150 kg - Increased thermal insulation - Applicable to all shift schedules - Possibility of integrating sliding shutters and / or insecticide sliding shutters - "Hidden Wings" in walls are possible
Technical specifications:
Type: Lift & Slide
Mechanism: GU-line Frame depth: 114.5 mm Sash depth: 45 mm Weight limit of the sash: 150 kg Maximum glass thickness: 28 mm System Type: thermal break Type of insulation: 24 mm polyamide U-value: 4.26 W / (m²K) Types:
Product certificates: |
